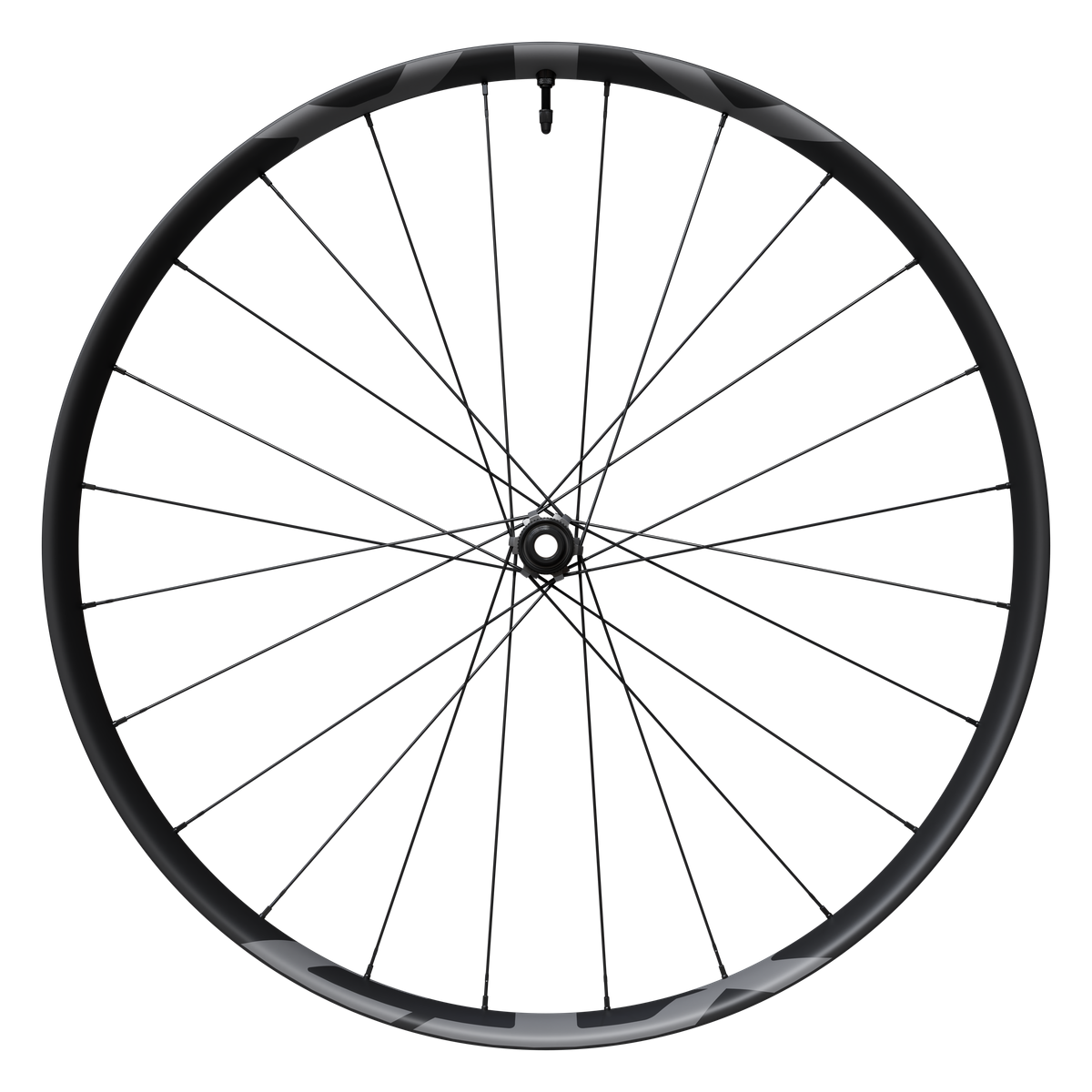

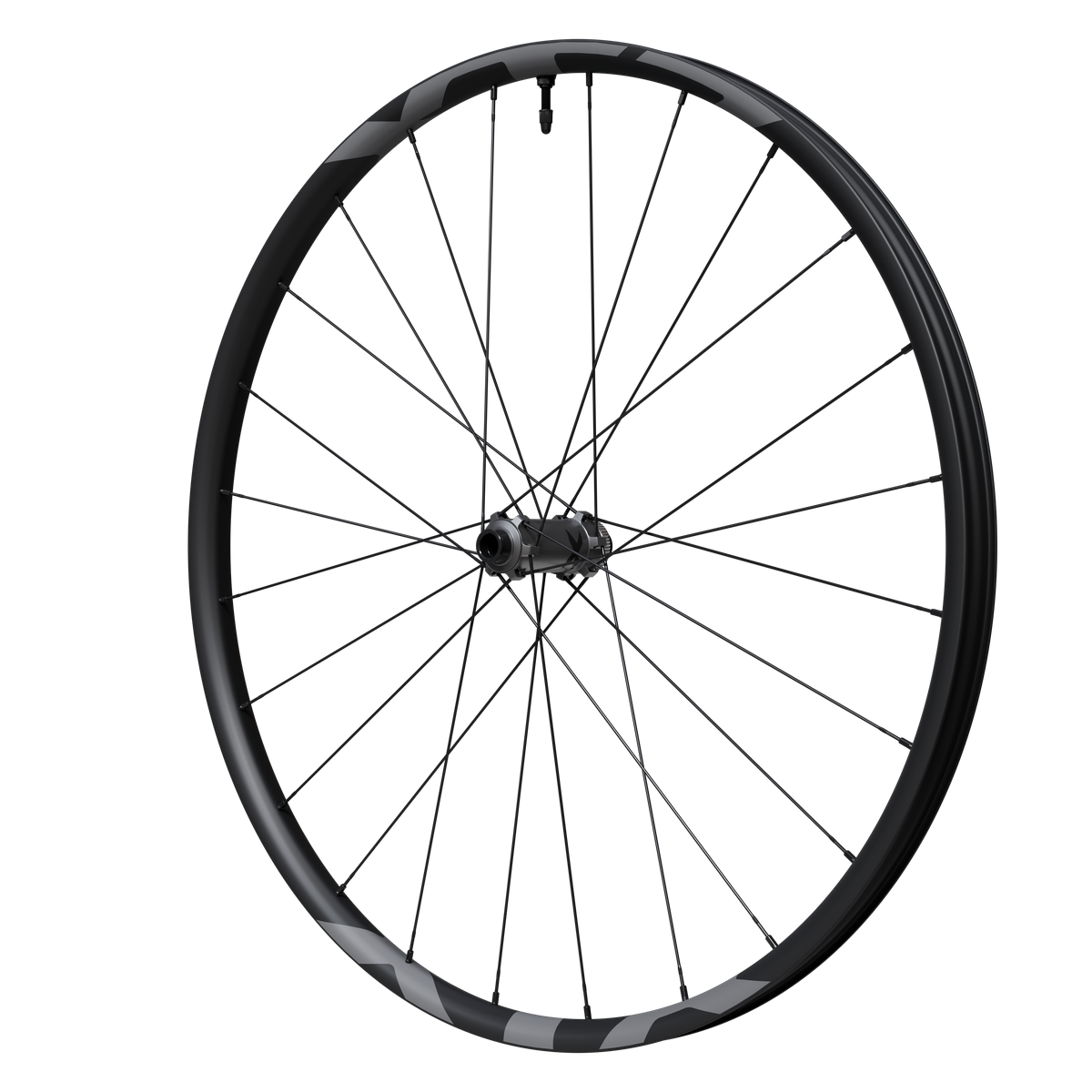

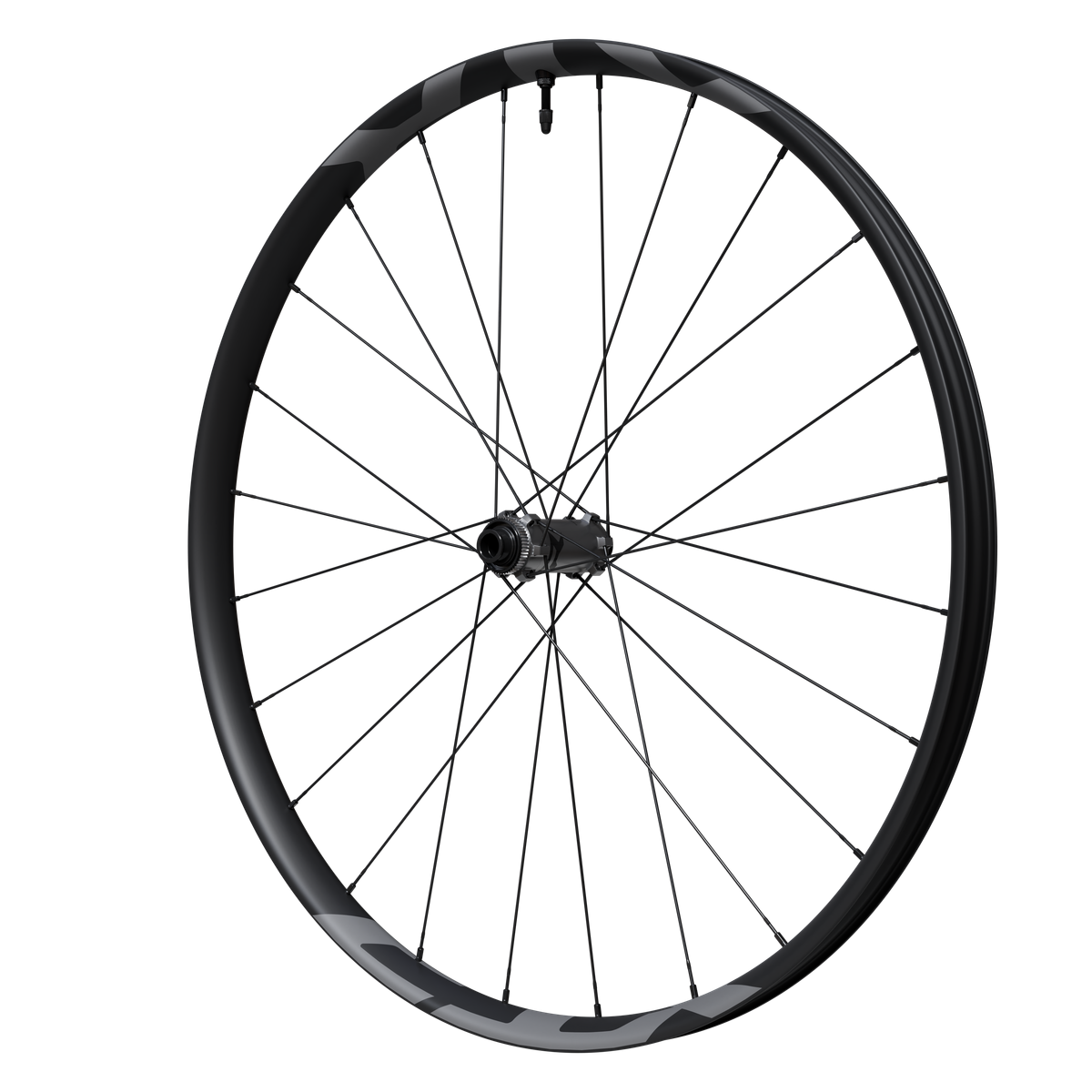

Shimano WH-M9200-TL front (29in) Front Wheel
What the checker says36will not fit18check before you buy
Run variant by variant through the mountain bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 5904 verified mountain bike parts in this catalog. 5290 produced no finding of any kind; that is WH-M9200-TL front (29in) (2026). WH-M9220-TL front (29in) (2026) clears 5245. Each variant produces 36 distinct errors and 10 to 13 distinct warnings.
Will not fit
- Will not fiterror · Front TireFront wheel size mismatch: Front wheel 29", Front tire 27.5". On 223 of the 617 verified tires in this catalog. Applies to all 2 variants.
- Will not fiterror · ForkFront wheel size mismatch: Fork 27.5", Front wheel 29". On 157 of the 490 verified forks in this catalog. Applies to all 2 variants.
- Will not fiterror · Front RotorFront rotor: a 6-bolt rotor does not mount on a Center Lock front hub as it is - the two use different rotor interfaces. The part that bridges them is a Center Lock adapter, and the ones makers publish fit one-piece rotors only. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 112 of the 177 verified rotors in this catalog. Applies to all 2 variants.
- Will not fiterror · ForkFront axle mismatch: Fork is 20x110 Boost (DH) but Front wheel hub is Boost 15x110. On 56 of the 490 verified forks in this catalog. Applies to all 2 variants.
- Will not fiterror · Front TireFront wheel size mismatch: Front wheel 29", Front tire 26". On 21 of the 617 verified tires in this catalog. Applies to all 2 variants.
- Will not fiterror · Rear TireUnsupported wheel setup: front 29" / rear 26" matches no configuration (24"/24", 26"/26", 27.5"/27.5", 29"/29", 32"/32", mullet = 29" front / 27.5" rear). On 21 of the 617 verified tires in this catalog. Applies to all 2 variants.
- Will not fiterror · ForkFront axle mismatch: Fork is 15x100 (non-Boost) but Front wheel hub is Boost 15x110. On 14 of the 490 verified forks in this catalog. Applies to all 2 variants.
- Will not fiterror · ForkFront wheel size mismatch: Fork 26", Front wheel 29". On 12 of the 490 verified forks in this catalog. Applies to all 2 variants.
Wheel config, Frame. 19 more findings from the same check, on up to 1 of the 258 verified frames each.
Front axle, Fork. 3 more findings from the same check, on up to 7 of the 490 verified forks each.
Wheel config, Rear Rim. 2 more findings from the same check, on up to 3 of the 75 verified rims each.
Wheel config, Rear Wheel. 2 more findings from the same check, on up to 7 of the 607 verified rear wheels each.
Front wheel size, Front Tire. 1 more finding from the same check, on up to 3 of the 617 verified tires each.
Wheel config, Rear Tire. 1 more finding from the same check, on up to 3 of the 617 verified tires each.
Open a variant in the builder to see the ones that apply to your own parts.
Check before you buy
- Check before you buywarning · Front TireFront tire width: 2.2in is below the wheel maker's recommended minimum of 2.3in for this rim - a too-narrow tire squares off and loses bead support on a wide rim. On 34 of the 617 verified tires in this catalog. Applies to 1 of 2 variants.
- Check before you buywarning · Front TireFront tire width: 2.25in is below the wheel maker's recommended minimum of 2.3in for this rim - a too-narrow tire squares off and loses bead support on a wide rim. On 24 of the 617 verified tires in this catalog. Applies to 1 of 2 variants.
- Check before you buywarning · Front TireFront tire clearance: 2.8in tire is wider than the front wheel's 2.6in max. On 15 of the 617 verified tires in this catalog. Applies to all 2 variants.
- Check before you buywarning · Front TireFront tire width: 2.1in is below the wheel maker's recommended minimum of 2.2in for this rim - a too-narrow tire squares off and loses bead support on a wide rim. On 15 of the 617 verified tires in this catalog. Applies to 1 of 2 variants.
- Check before you buywarning · Front TireFront tire width: 2.1in is below the wheel maker's recommended minimum of 2.3in for this rim - a too-narrow tire squares off and loses bead support on a wide rim. On 15 of the 617 verified tires in this catalog. Applies to 1 of 2 variants.
- Check before you buywarning · Front TireFront tire clearance: 3in tire is wider than the front wheel's 2.6in max. On 5 of the 617 verified tires in this catalog. Applies to all 2 variants.
- Check before you buywarning · Front TireFront tire width: 2.05in is below the wheel maker's recommended minimum of 2.2in for this rim - a too-narrow tire squares off and loses bead support on a wide rim. On 2 of the 617 verified tires in this catalog. Applies to 1 of 2 variants.
- Check before you buywarning · Front TireFront tire width: 2.05in is below the wheel maker's recommended minimum of 2.3in for this rim - a too-narrow tire squares off and loses bead support on a wide rim. On 2 of the 617 verified tires in this catalog. Applies to 1 of 2 variants.
Front tire rim min, Front Tire. 7 more findings from the same check, on up to 1 of the 617 verified tires each.
Front tire rim, Front Tire. 3 more findings from the same check, on up to 1 of the 617 verified tires each.
Open a variant in the builder to see the ones that apply to your own parts.
$420.00 to $440.00 MSRP·517 to 840 g
What the maker states
- Wheel
- Built for a 29" wheel

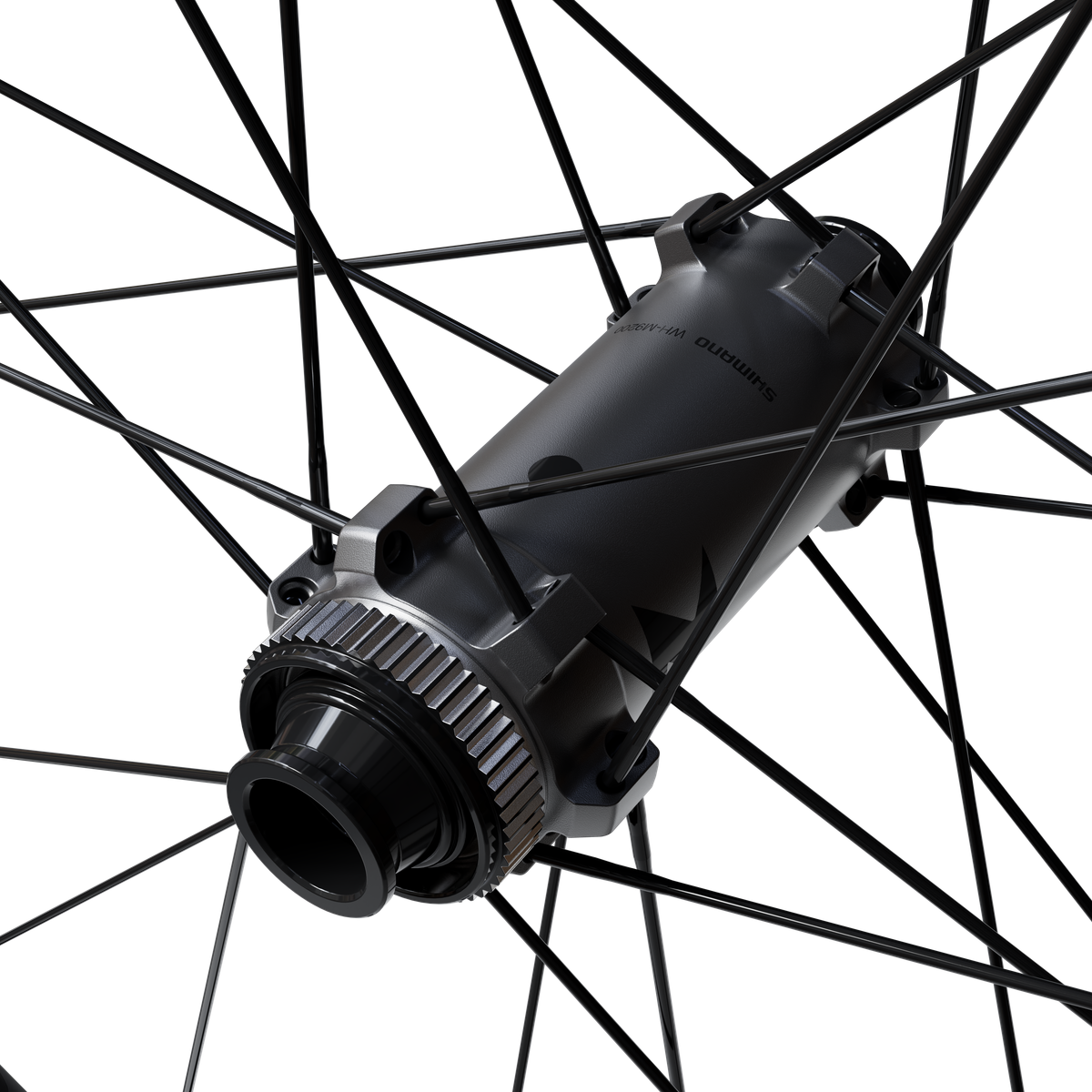

- Rotor mount
- Center Lock
- Internal width
- Internal rim width 29.6 mm (on 1 of 2 variants); Internal rim width 30 mm (on 1 of 2 variants)

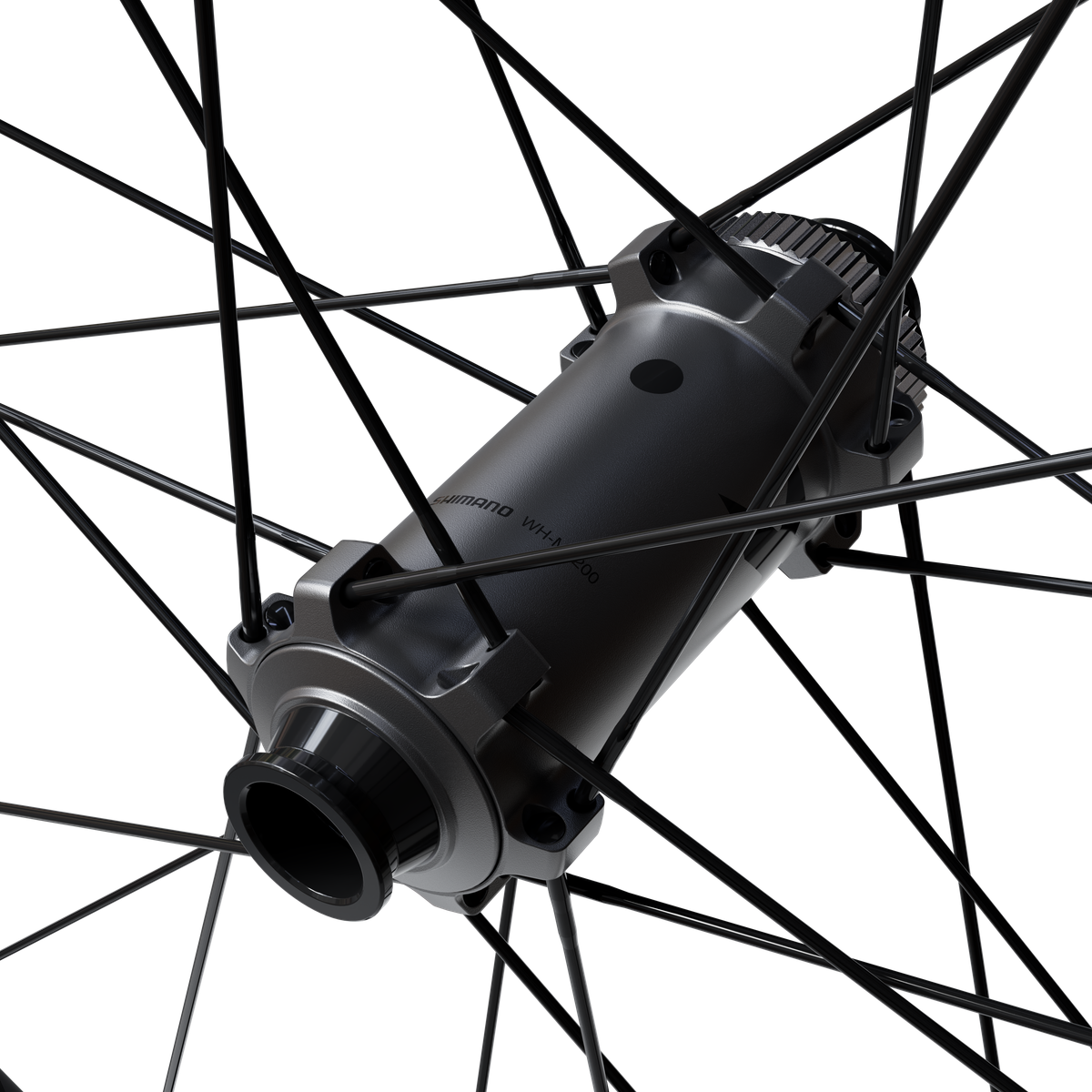

- Hub
- Spacing Boost 15x110
- Maximum tire
- Tire up to 2.6" (maker-stated maximum)
- Minimum tire
- Tire no narrower than 2.2" (on 1 of 2 variants); Tire no narrower than 2.3" (on 1 of 2 variants)
A value shown as a set or a range differs between this model’s variants and is never one variant’s spec.
2 verified variants
| Variant | Internal width | Minimum tire | Price (MSRP) | Weight | Source | Last checked | Build |
|---|---|---|---|---|---|---|---|
| WH-M9200-TL front (29in) (2026) | Internal rim width 29.6 mm | Tire no narrower than 2.2" | $420.00 | 517 g | maker’s page | 2026-08-15 | Build with this |
| WH-M9220-TL front (29in) (2026) | Internal rim width 30 mm | Tire no narrower than 2.3" | $440.00 | 840 g | maker’s page | 2026-08-15 | Build with this |
The rest of what the maker states4 not published
4 further fields the checker looks for are not published by Shimano, so we leave them blank rather than estimate them, and those 4 checks stay silent on this front wheel. They are maximum tire mm, maximum tire basis, tire range kind and maximum system weight. Each is recorded as “not stated by the maker (not checked)”.
Source: each variant links the maker’s own page in the table above. Last checked 2026-08-15.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 5DEV R-SPEC Trail/Enduro Cranks (Crankset) No conflicts found
- 9point8 Fall Line (Dropper Post) No conflicts found
- 9point8 Stout (31.8, 30mm) (Stem) No conflicts found
- ACID SLX 30 rear (Rear Wheel) No conflicts found
- Acros ZS44/ZS56 (Headset) No conflicts found
- Acros ZS56/ZS56 (Headset) No conflicts found
6 of 1763 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
