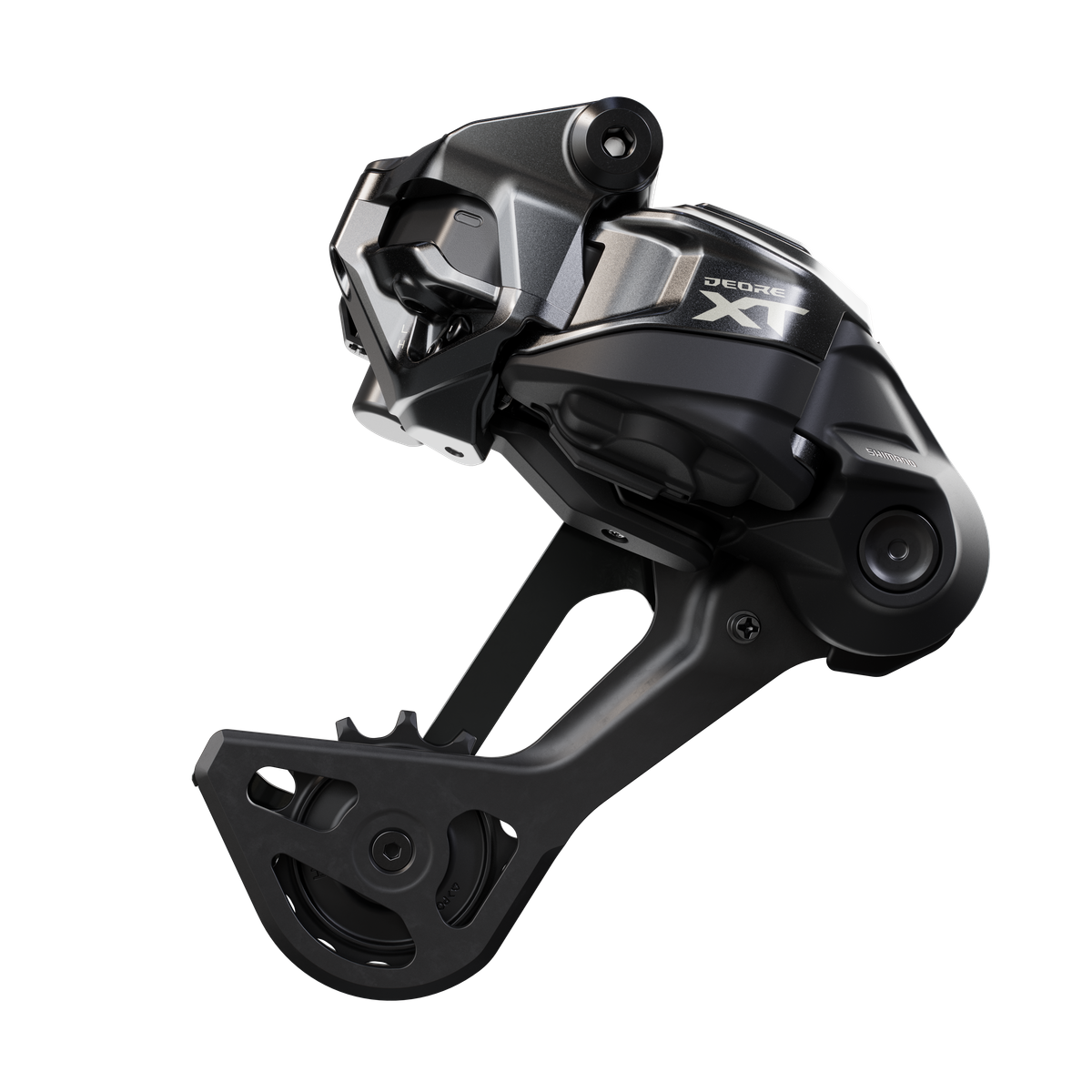

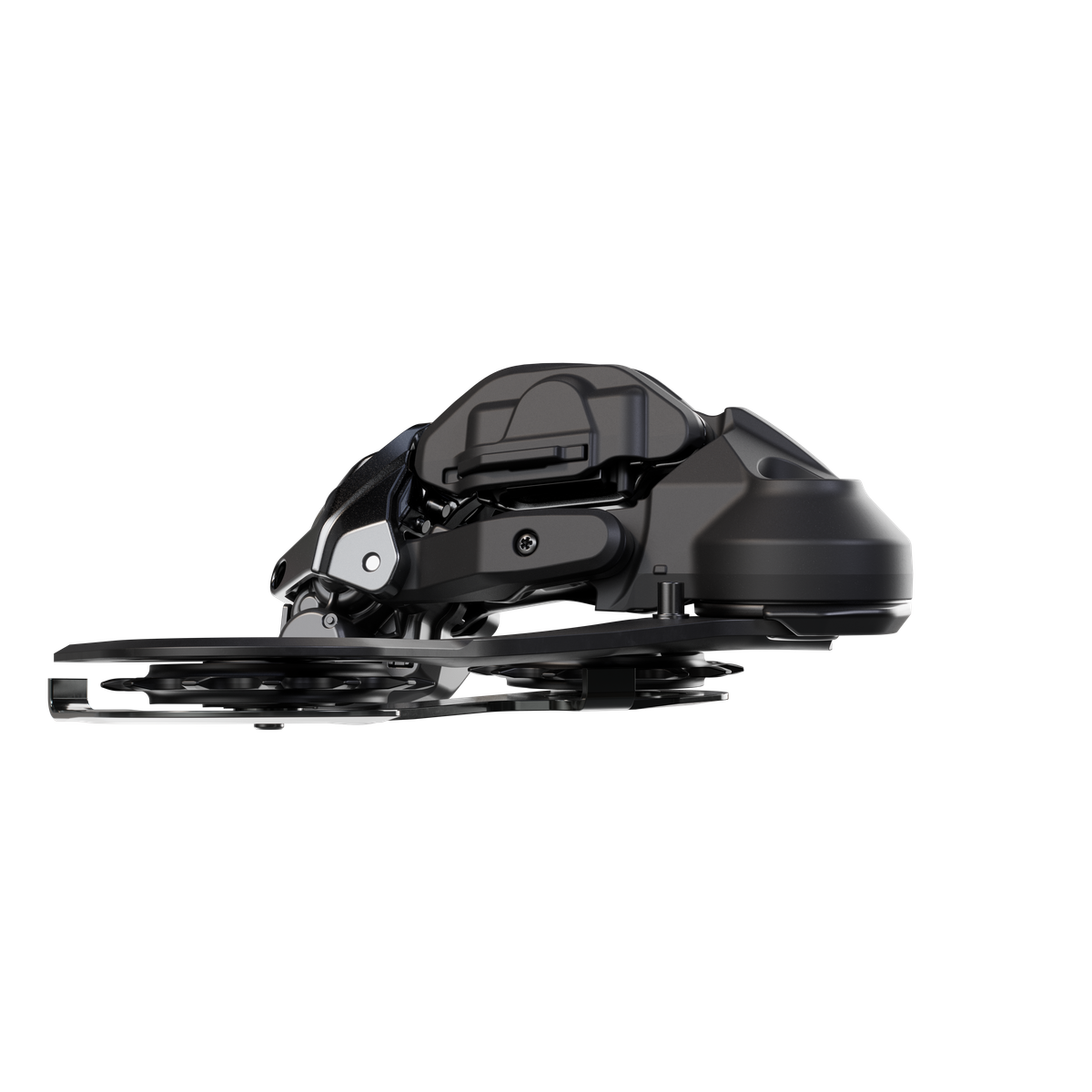

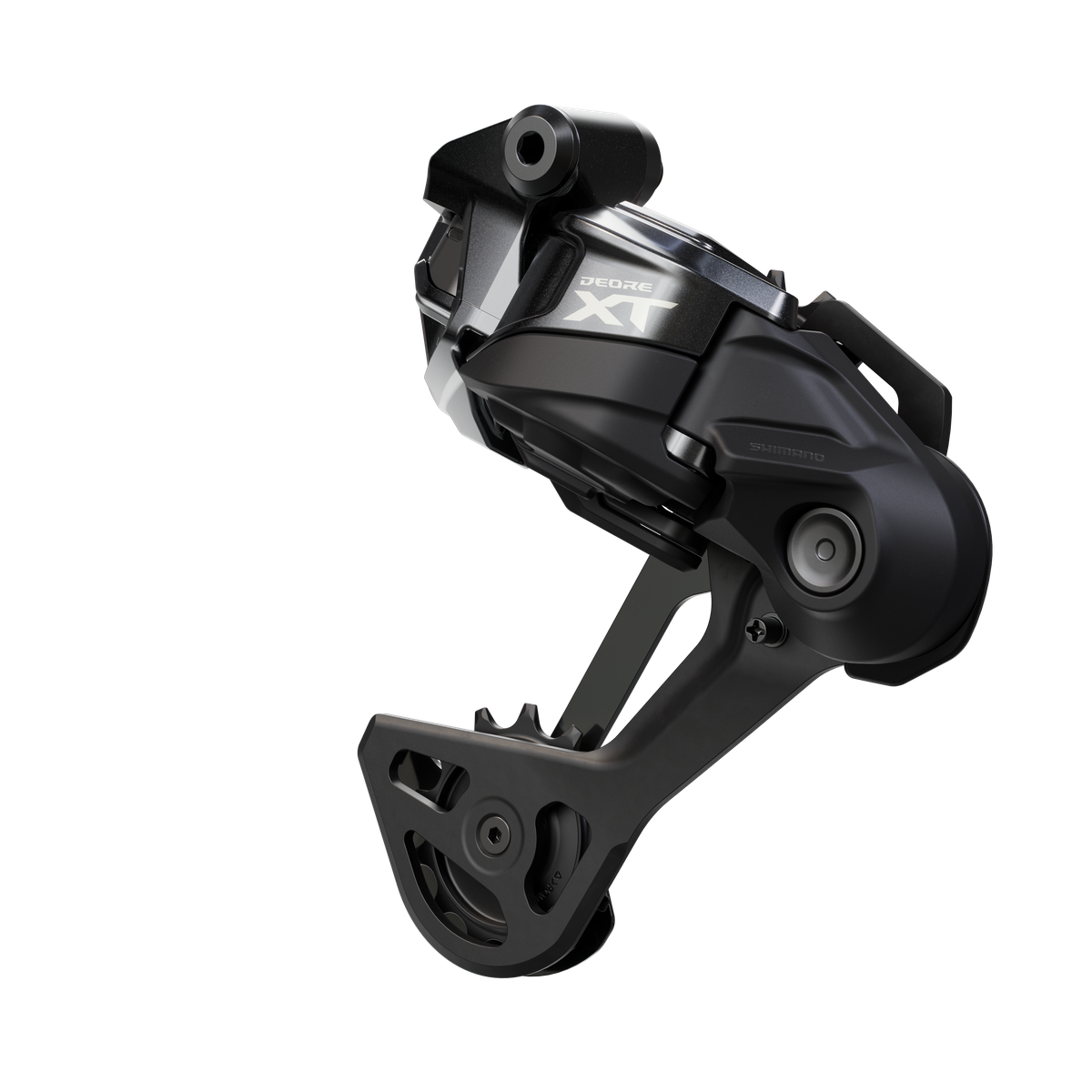

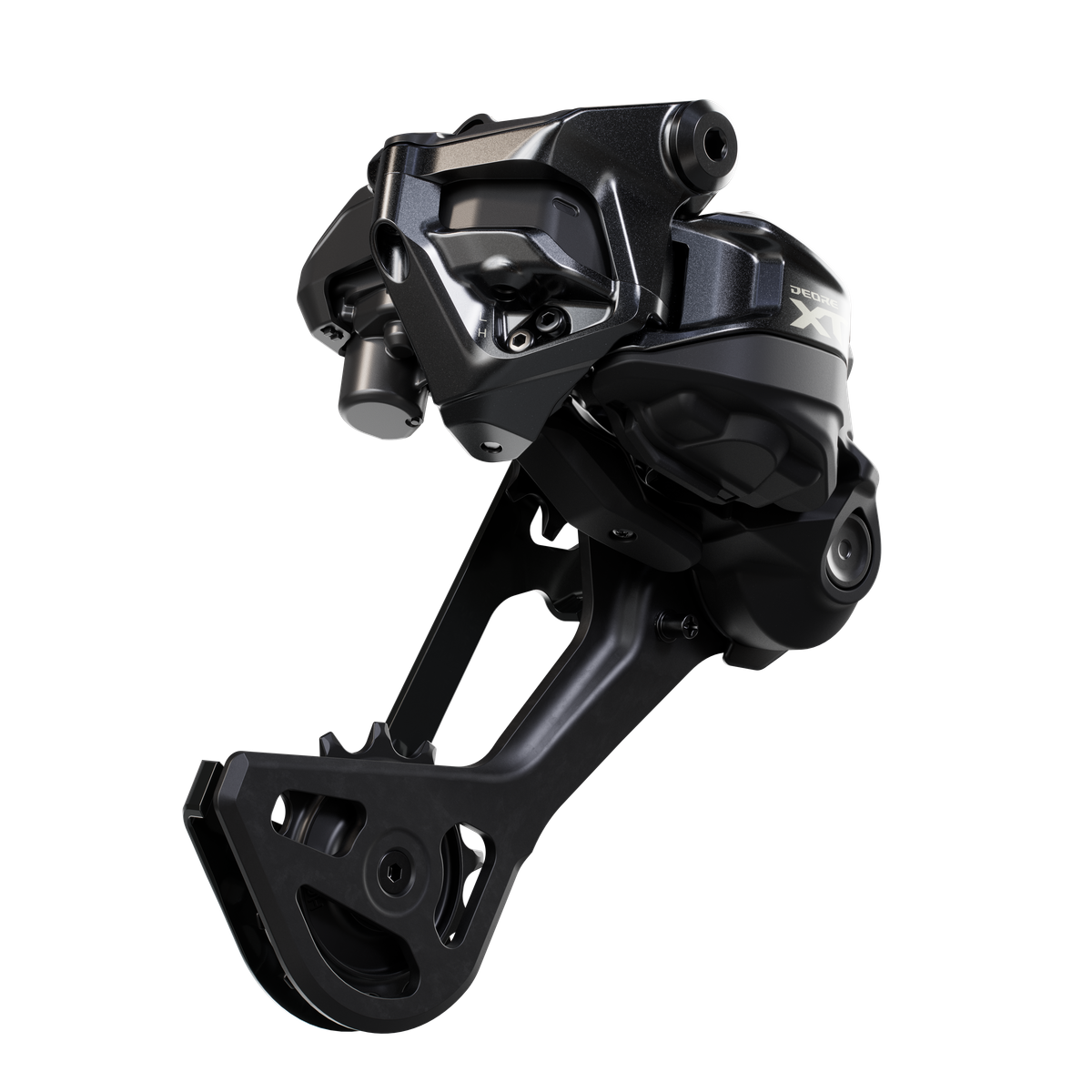

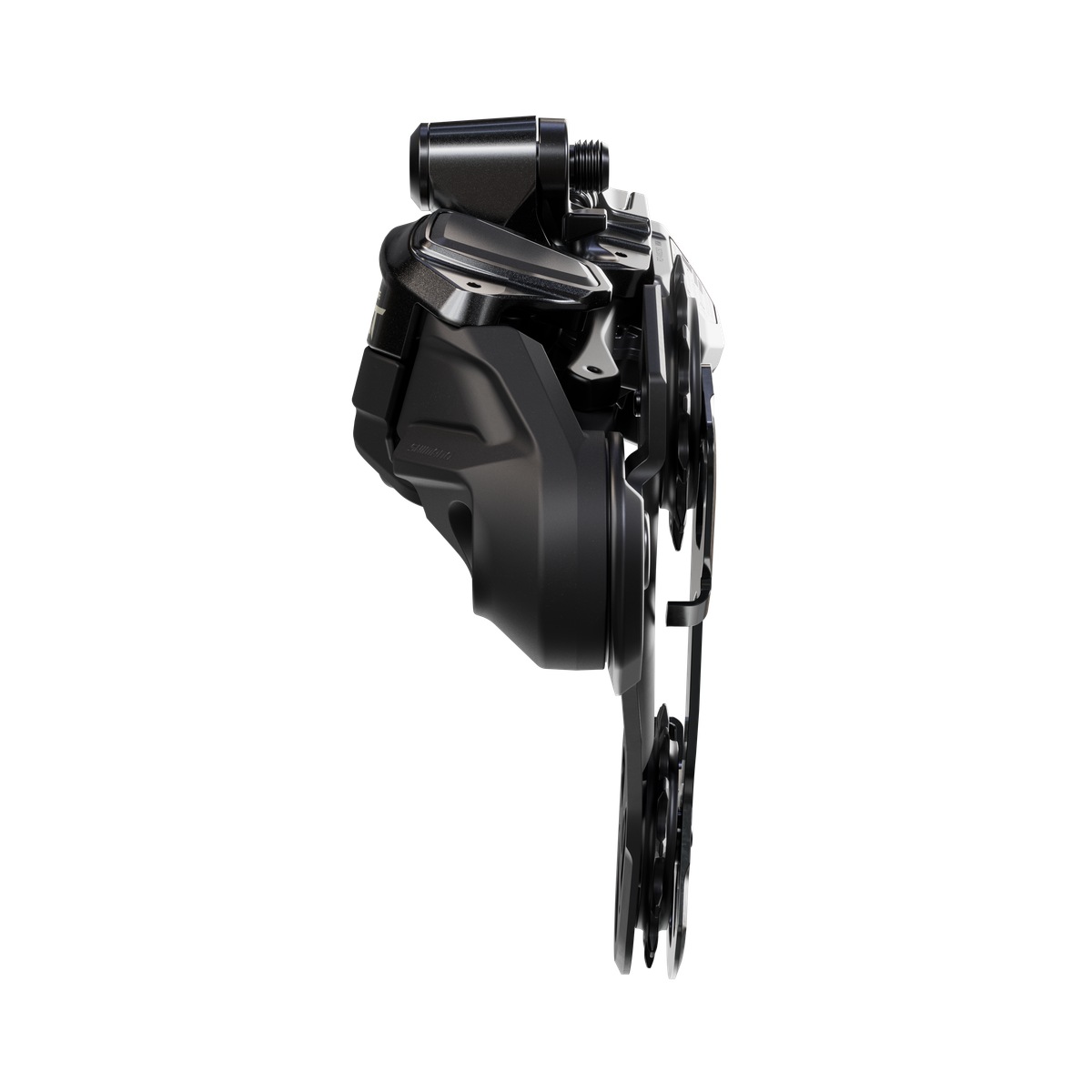

Shimano Deore XT Rear Derailleur
What the checker says260will not fit
Run variant by variant through the mountain bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 6099 verified mountain bike parts in this catalog. 5926 produced no finding of any kind; that is Deore XT M8260 Di2 12-speed (wired) (2026). Deore XT M8260 Di2 11-speed LinkGlide (wired) (2026) clears 5923. Each variant produces 104 distinct errors and 0 distinct warnings.
Will not fit
- Will not fiterror · CassetteSpeed mismatch: Derailleur 11s, Cassette 12s. Shifter, derailleur and cassette must be the same speed count. On 31 of the 60 verified cassettes in this catalog. Applies to 1 of 3 variants.
- Will not fiterror · ShifterSpeed mismatch: Shifter 12s, Derailleur 11s. Shifter, derailleur and cassette must be the same speed count. On 28 of the 53 verified shifters in this catalog. Applies to 1 of 3 variants.
- Will not fiterror · ShifterDrivetrain mismatch: Shifter = Shimano 12-speed, Derailleur = Shimano LinkGlide (CUES). Shifter, derailleur, cassette, chain and front derailleur must be one system. On 19 of the 53 verified shifters in this catalog. Applies to 1 of 3 variants.
- Will not fiterror · CassetteDrivetrain mismatch: Derailleur = Shimano 12-speed, Cassette = Shimano LinkGlide (CUES). Shifter, derailleur, cassette, chain and front derailleur must be one system. On 16 of the 60 verified cassettes in this catalog. Applies to 2 of 3 variants.
- Will not fiterror · CassetteDrivetrain mismatch: Derailleur = Shimano LinkGlide (CUES), Cassette = Shimano 12-speed. Shifter, derailleur, cassette, chain and front derailleur must be one system. On 15 of the 60 verified cassettes in this catalog. Applies to 1 of 3 variants.
- Will not fiterror · CassetteCassette too big: 52T cassette exceeds the Shimano Deore XT M8250 Di2 max of 51T. On 13 of the 60 verified cassettes in this catalog. Applies to 1 of 3 variants.
- Will not fiterror · CassetteCassette too big: 52T cassette exceeds the Shimano Deore XT M8260 Di2 11-speed LinkGlide (wired) max of 50T. On 13 of the 60 verified cassettes in this catalog. Applies to 1 of 3 variants.
- Will not fiterror · CassetteCassette too big: 52T cassette exceeds the Shimano Deore XT M8260 Di2 12-speed (wired) max of 51T. On 13 of the 60 verified cassettes in this catalog. Applies to 1 of 3 variants.
Actuation, Shifter. 150 more findings from the same check, on up to 1 of the 53 verified shifters each.
Drivetrain system, Chain. 30 more findings from the same check, on up to 9 of the 45 verified chains each.
Drivetrain system, Shifter. 23 more findings from the same check, on up to 11 of the 53 verified shifters each.
Drivetrain system, Cassette. 20 more findings from the same check, on up to 9 of the 60 verified cassettes each.
Drivetrain speeds, Cassette. 9 more findings from the same check, on up to 11 of the 60 verified cassettes each.
Drivetrain speeds, Shifter. 9 more findings from the same check, on up to 10 of the 53 verified shifters each.
Drivetrain system, Front Derailleur. 7 more findings from the same check, on up to 12 of the 34 verified front derailleurs each.
Gearbox derailleur, Gearbox. 3 more findings from the same check, on up to 6 of the 6 verified gearboxs each.
Cassette capacity, Cassette. 1 more finding from the same check, on up to 10 of the 60 verified cassettes each.
Open a variant in the builder to see the ones that apply to your own parts.
$520.00 MSRP·427 to 449 g
What the maker states
- Actuation
- Electronic (wireless)
- Mount
- Standard hanger
- System
- Drivetrain system Shimano 12-speed (on 2 of 3 variants); Drivetrain system Shimano LinkGlide (CUES) (on 1 of 3 variants)
- Speeds
- 12-speed (rear index count the maker rates it for) (on 2 of 3 variants); 11-speed (rear index count the maker rates it for) (on 1 of 3 variants)
- Maximum cog
- Largest cog 51 teeth (on 2 of 3 variants); Largest cog 50 teeth (on 1 of 3 variants)
A value shown as a set or a range differs between this model’s variants and is never one variant’s spec.
3 verified variants
| Variant | System | Speeds | Maximum cog | Price (MSRP) | Weight | Source | Last checked | Build |
|---|---|---|---|---|---|---|---|---|
| Deore XT M8250 Di2 (2026) | Drivetrain system Shimano 12-speed | 12-speed (rear index count the maker rates it for) | Largest cog 51 teeth | $520.00 | 449 g | maker’s page | 2026-07-20 | Build with this |
| Deore XT M8260 Di2 12-speed (wired) (2026) | Drivetrain system Shimano 12-speed | 12-speed (rear index count the maker rates it for) | Largest cog 51 teeth | $520.00 | 427 g | maker’s page | 2026-09-03 | Build with this |
| Deore XT M8260 Di2 11-speed LinkGlide (wired) (2026) | Drivetrain system Shimano LinkGlide (CUES) | 11-speed (rear index count the maker rates it for) | Largest cog 50 teeth | $520.00 | 427 g | maker’s page | 2026-09-03 | Build with this |
The rest of what the maker states2 not published
2 further fields the checker looks for are not published by Shimano, so we leave them blank rather than estimate them, and those 2 checks stay silent on this rear derailleur. They are maximum cog top and total capacity. Each is recorded as “not stated by the maker (not checked)”.
Source: each variant links the maker’s own page in the table above. Last checked 2026-07-20 to 2026-09-03.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 5DEV R-SPEC Trail/Enduro Cranks (Crankset) No conflicts found
- 9point8 Fall Line (Dropper Post) No conflicts found
- 9point8 Stout (31.8, 30mm) (Stem) No conflicts found
- ACID SLX 30 front (Front Wheel) No conflicts found
- ACID SLX 30 rear (Rear Wheel) No conflicts found
- Acros ZS44/ZS56 (Headset) No conflicts found
6 of 1858 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
