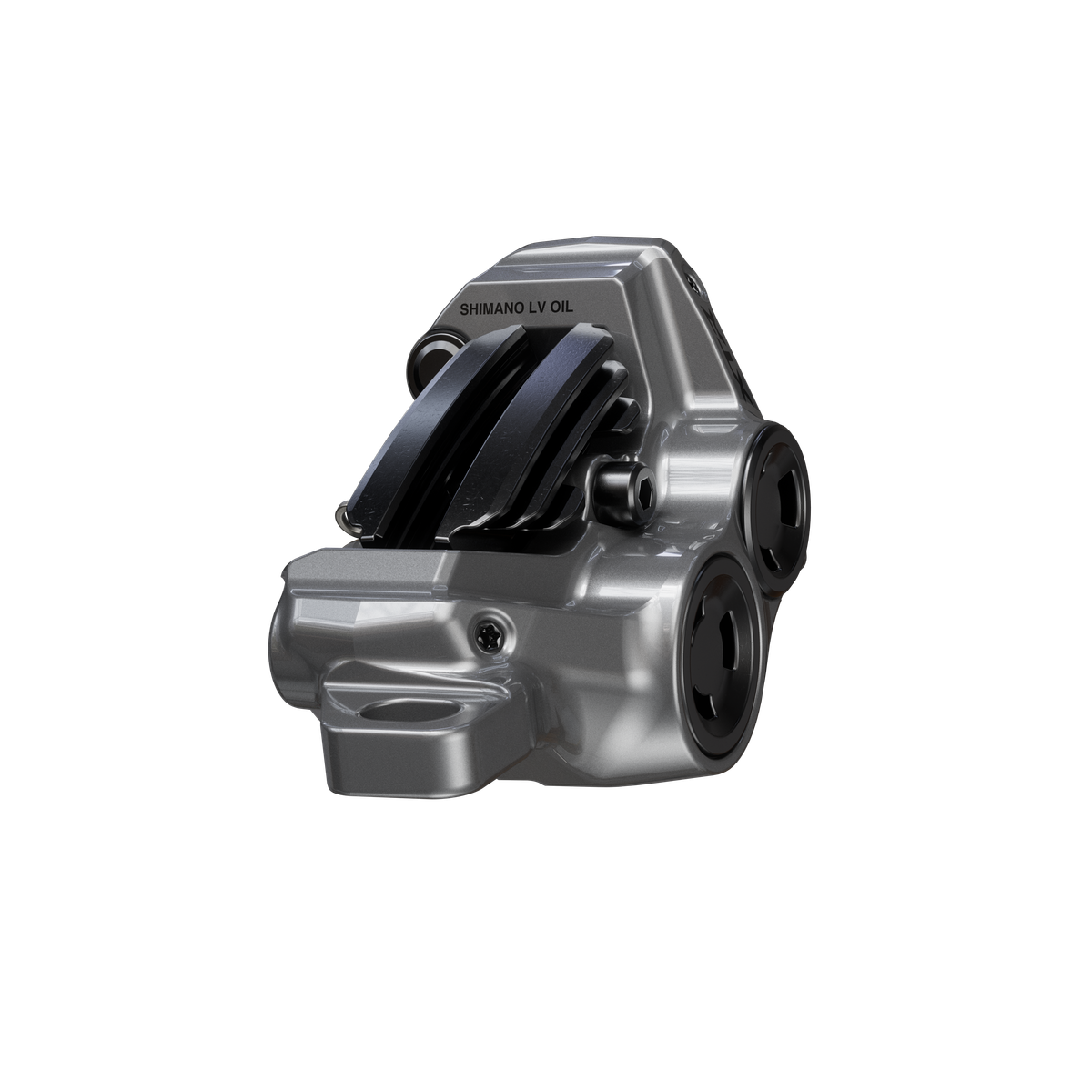

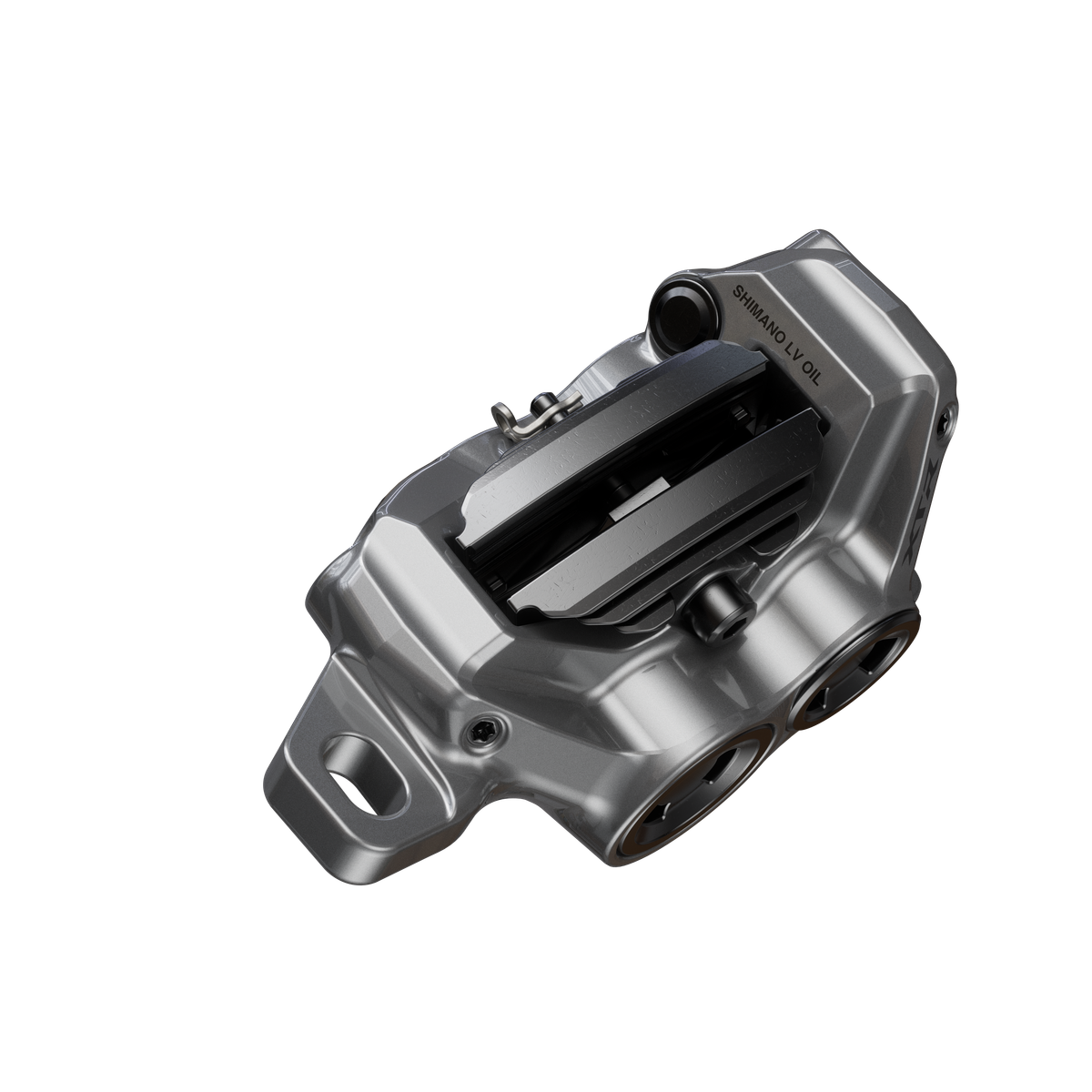

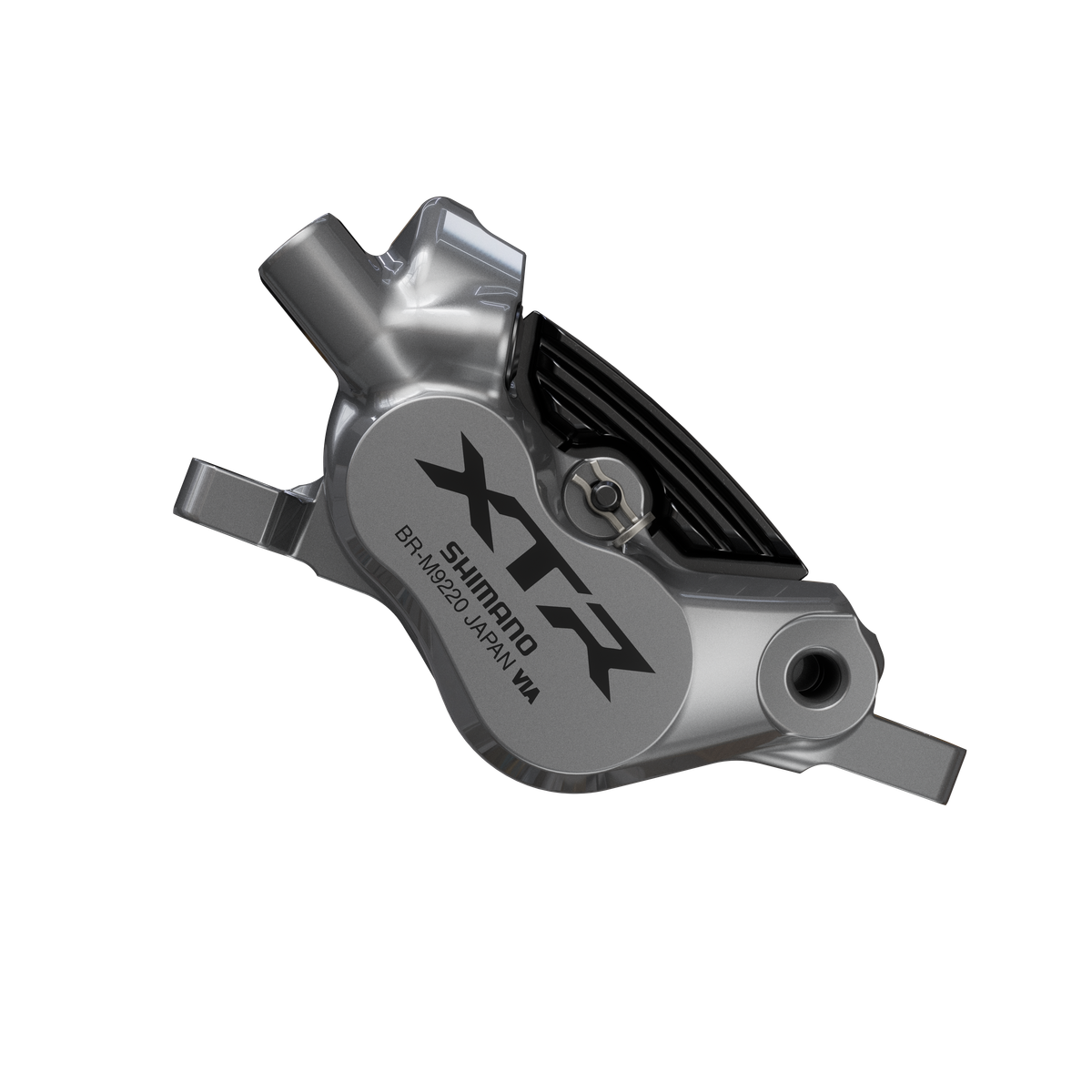

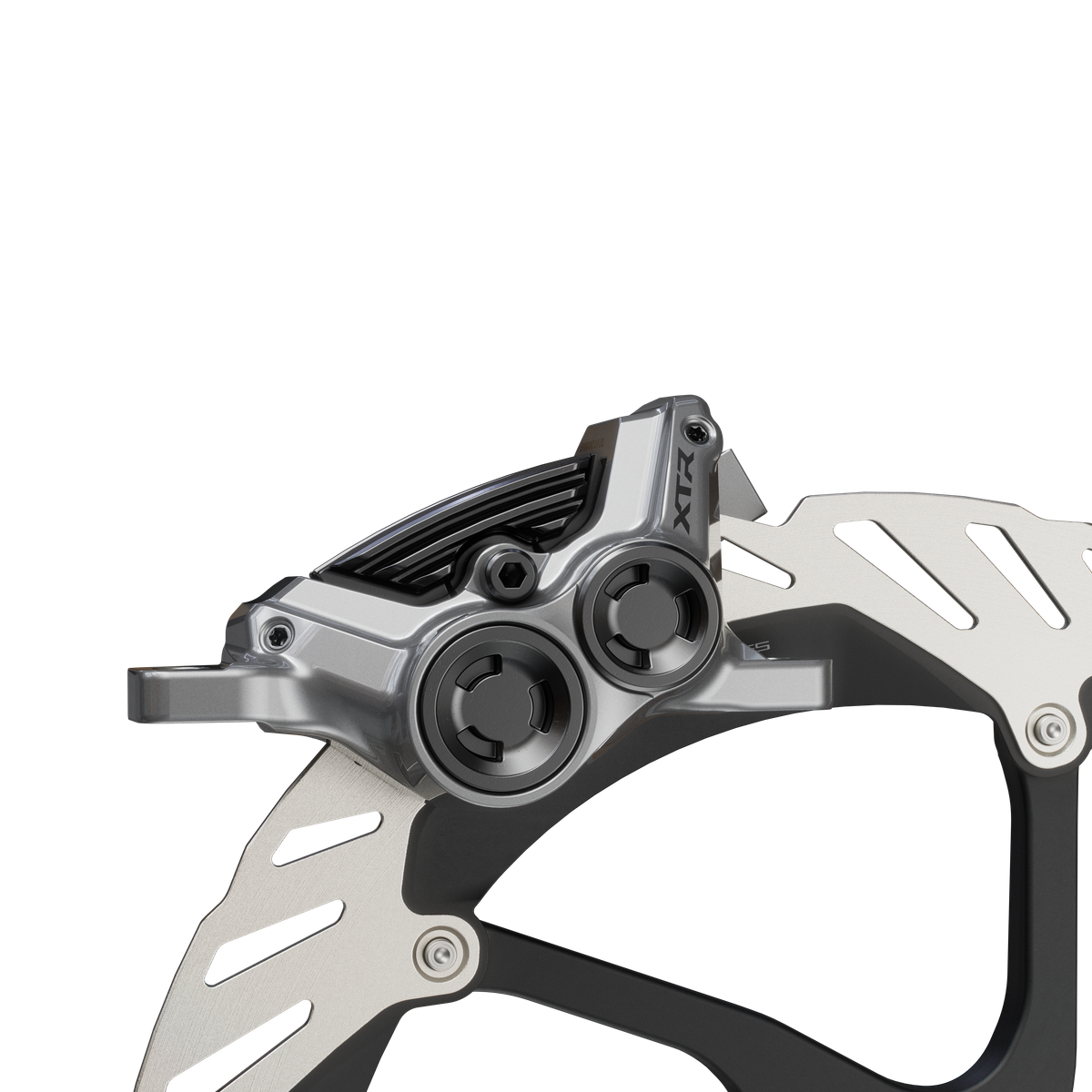

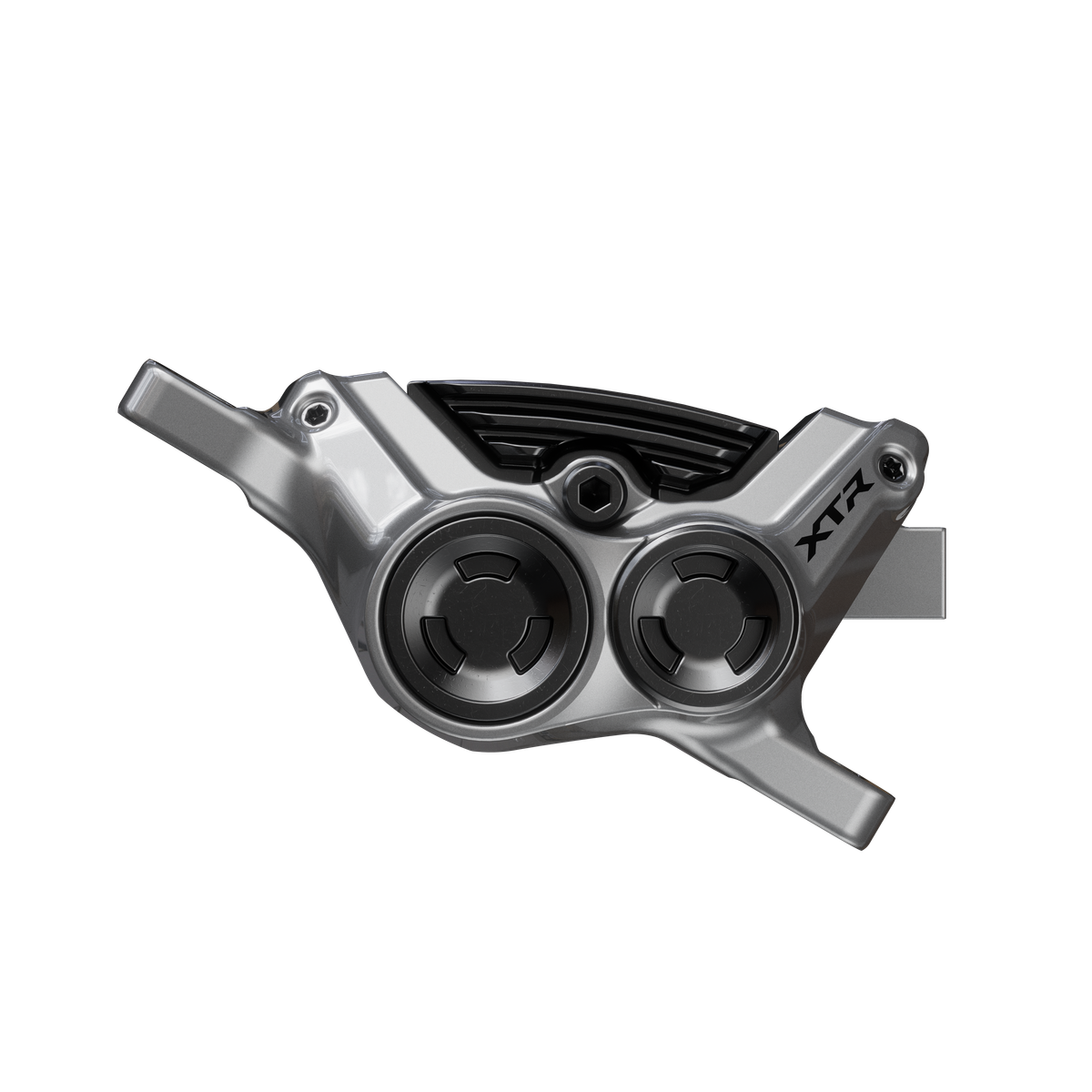

Shimano XTR BR-M9220 (4-piston) Front Brake
What the checker says7will not fit
Run variant by variant through the mountain bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 6082 verified mountain bike parts in this catalog. 6075 produced no finding of any kind.
Will not fit
- Will not fiterror · ShifterShifter mount: SRAM Eagle S200 is a MatchMaker X lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
- Will not fiterror · ShifterShifter mount: SRAM GX DH X-Actuation Trigger (7s) is a MatchMaker X lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
- Will not fiterror · ShifterShifter mount: SRAM X01 Eagle Trigger is a MatchMaker X lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
- Will not fiterror · ShifterShifter mount: Shimano CUES SL-U8000-11IR is a I-Spec II lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
- Will not fiterror · ShifterShifter mount: Shimano Saint SL-M820-B-I (I-SPEC B) is a I-Spec B lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
- Will not fiterror · ShifterShifter mount: TRP EVO 12 Shifter is a MatchMaker X lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
- Will not fiterror · ShifterShifter mount: TRP EVO 7 DH Shifter is a MatchMaker X lever-integrated shifter (no bar clamp of its own), and the brake levers take I-Spec EV, so it does not bolt to them. The band-clamp version of the shifter, or a ShiftMount-style adapter, is what bridges that. A shim or adapter may make other sizes or standards work, but that is a modification, not a fit. On 1 of the 53 verified shifters in this catalog.
$330.00 MSRP·314 g
What the maker states
- Mount
- Post mount caliper
- Pistons
- 4-piston caliper
- Lever accepts
- I-Spec EV
The rest of what the maker states5 not published
5 further fields the checker looks for are not published by Shimano, so we leave them blank rather than estimate them, and those 5 checks stay silent on this front brake. They are maximum rotor, excludes rotor, maximum rotor evidence, design rotor thickness and design rotor thickness maximum. Each is recorded as “not stated by the maker (not checked)”.
Source: the maker’s page. Last checked 2026-07-12.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 5DEV R-SPEC Trail/Enduro Cranks (Crankset) No conflicts found
- 9point8 Fall Line (Dropper Post) No conflicts found
- 9point8 Stout (31.8, 30mm) (Stem) No conflicts found
- ACID SLX 30 front (Front Wheel) No conflicts found
- ACID SLX 30 rear (Rear Wheel) No conflicts found
- Acros ZS44/ZS56 (Headset) No conflicts found
6 of 1862 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
