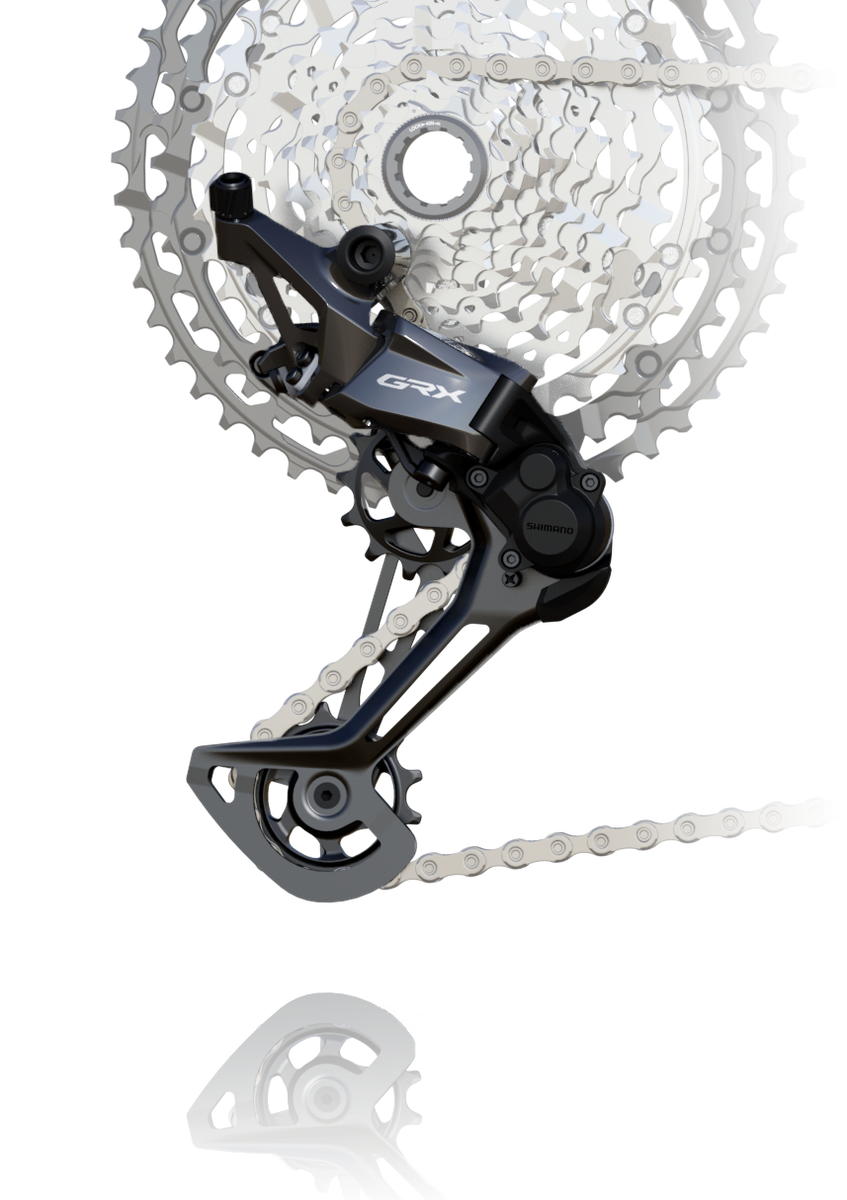

Shimano GRX RD-RX822-SGS Rear Derailleur
What the checker says46will not fit
Run variant by variant through the gravel bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 838 verified gravel bike parts in this catalog. 794 produced no finding of any kind; that is GRX RD-RX822-SGS. GRX RD-RX822 clears 793. Each variant produces 37 to 39 distinct errors and 0 distinct warnings.
Will not fit
- Will not fiterror · CassetteSpeed mismatch: Rear derailleur 12s, Cassette 13s. The drivetrain must share one speed count. On 4 of the 18 verified cassettes in this catalog. Applies to all 2 variants.
- Will not fiterror · Front DerailleurDrivetrain mismatch: Front derailleur = sram-axs-road, Rear derailleur = shimano-grx-12. Shifter, derailleurs and cassette must be one system. On 4 of the 11 verified front derailleurs in this catalog. Applies to all 2 variants.
Rg actuation, Shifter/Brake Levers. 14 more findings from the same check, on up to 1 of the 17 verified shifter/brake levers each.
Rg drivetrain system, Cassette. 7 more findings from the same check, on up to 3 of the 18 verified cassettes each.
Rg drivetrain system, Shifter/Brake Levers. 7 more findings from the same check, on up to 3 of the 17 verified shifter/brake levers each.
Rg chain std, Chain. 6 more findings from the same check, on up to 1 of the 17 verified chains each.
Rg drivetrain speeds, Shifter/Brake Levers. 3 more findings from the same check, on up to 3 of the 17 verified shifter/brake levers each.
Rg drivetrain system, Front Derailleur. 3 more findings from the same check, on up to 3 of the 11 verified front derailleurs each.
Rg drivetrain speeds, Cassette. 2 more findings from the same check, on up to 3 of the 18 verified cassettes each.
Rg rd capacity, Cassette. 2 more findings from the same check, on up to 2 of the 18 verified cassettes each.
Open a variant in the builder to see the ones that apply to your own parts.
$400.00 to $420.00 MSRP·288 to 290 g
What the maker states
- System
- Drivetrain system shimano-grx-12
- Speeds
- 12-speed (rear index count the maker rates it for)
- Actuation
- Mechanical
- Maximum cog
- Largest cog 45 teeth (on 1 of 2 variants); Largest cog 51 teeth (on 1 of 2 variants)
- Mount
- Std-hanger
- Cage
- gs cage (on 1 of 2 variants); sgs cage (on 1 of 2 variants)
A value shown as a set or a range differs between this model’s variants and is never one variant’s spec.
2 verified variants
| Variant | Maximum cog | Cage | Price (MSRP) | Weight | Source | Last checked | Build |
|---|---|---|---|---|---|---|---|
| GRX RD-RX822-SGS | Largest cog 51 teeth | sgs cage | $420.00 | 288 g | maker’s page | 2026-08-15 | Build with this |
| GRX RD-RX822 | Largest cog 45 teeth | gs cage | $400.00 | 290 g | maker’s page | 2026-07-17 | Build with this |
Source
Source: each variant links the maker’s own page in the table above. Last checked 2026-07-17 to 2026-08-15.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 3T Exploro Race (Frame) No conflicts found
- 3T Fango LTD (Fork) No conflicts found
- 8bar Gravel Carbon Disc Fork v2 (Fork) No conflicts found
- 9point8 Fall Line R (Dropper Post) No conflicts found
- Acros ZS44/28.6 | EC44/40 Headset (Headset) No conflicts found
- All-City Cosmic Stallion LTD (Frame) No conflicts found
6 of 490 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
