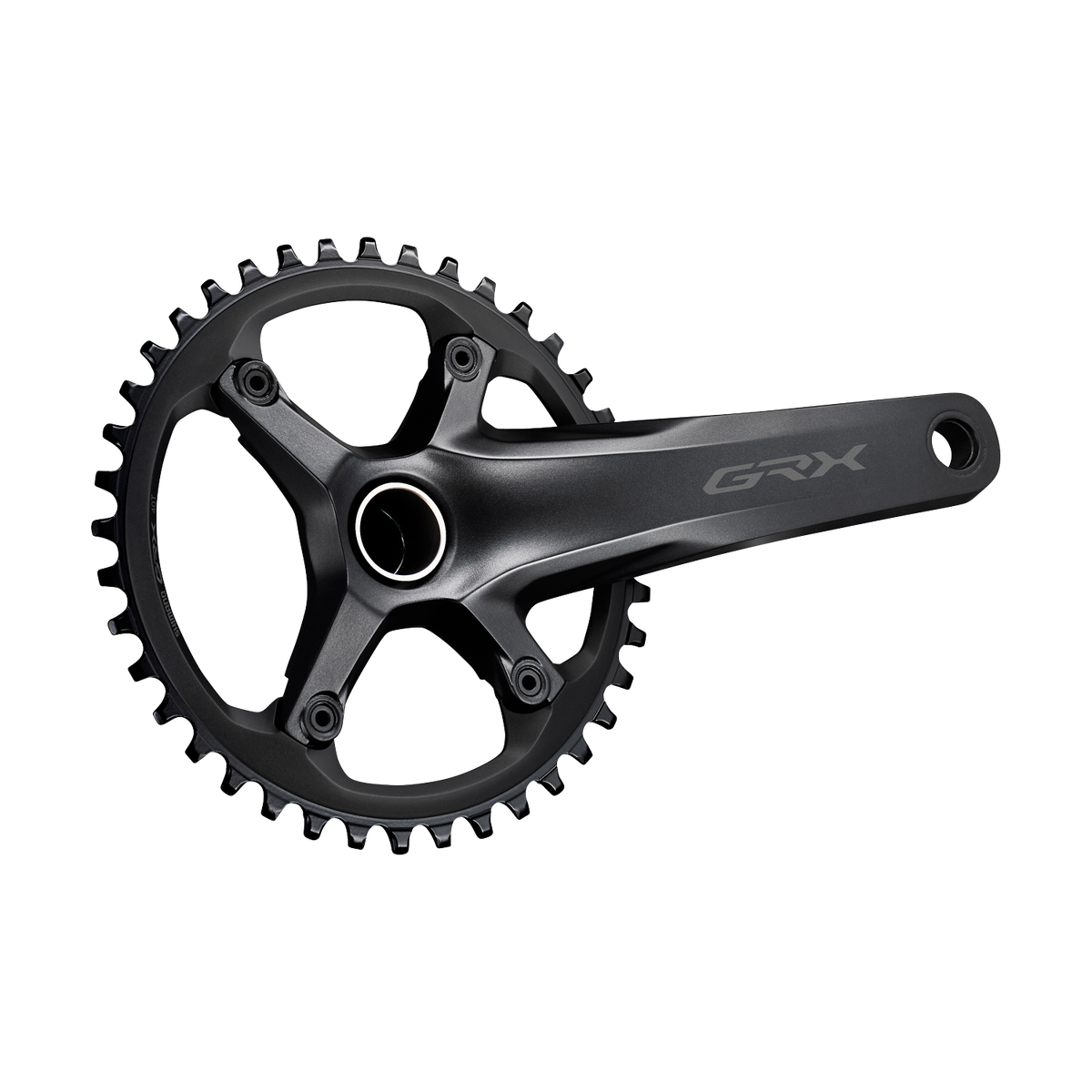

Shimano GRX FC-RX600-1 Crankset
What the checker says16will not fit12worth knowing
Run variant by variant through the gravel bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 826 verified gravel bike parts in this catalog. 741 produced no finding of any kind.
Will not fit
Rg bb spindle, Bottom Bracket. 16 more findings from the same check, on up to 1 of the 29 verified bottom brackets each.
Open a variant in the builder to see the ones that apply to your own parts.
Worth knowing
- Worth knowinginfo · FrameBottom bracket: Shimano GRX FC-RX600-1 has a 24mm-road spindle - pick the matching bsa-road-shell / 24mm-road bottom bracket for this frame (sold separately). On 33 of the 69 verified frames in this catalog.
- Worth knowinginfo · FrameBottom bracket: Shimano GRX FC-RX600-1 has a 24mm-road spindle - pick the matching bb86-shell / 24mm-road bottom bracket for this frame (sold separately). On 13 of the 69 verified frames in this catalog.
- Worth knowinginfo · FrameBottom bracket: Shimano GRX FC-RX600-1 has a 24mm-road spindle - pick the matching t47-86-shell / 24mm-road bottom bracket for this frame (sold separately). On 7 of the 69 verified frames in this catalog.
- Worth knowinginfo · FrameBottom bracket: Shimano GRX FC-RX600-1 has a 24mm-road spindle - pick the matching bb386evo-shell / 24mm-road bottom bracket for this frame (sold separately). On 6 of the 69 verified frames in this catalog.
- Worth knowinginfo · FrameBottom bracket: Shimano GRX FC-RX600-1 has a 24mm-road spindle - pick the matching pf30-shell / 24mm-road bottom bracket for this frame (sold separately). On 2 of the 69 verified frames in this catalog.
- Worth knowinginfo · FrameBottom bracket: Shimano GRX FC-RX600-1 has a 24mm-road spindle - pick the matching t47-73-shell / 24mm-road bottom bracket for this frame (sold separately). On 2 of the 69 verified frames in this catalog.
Rg bb advisory, Frame. 6 more findings from the same check, on up to 1 of the 69 verified frames each.
Open a variant in the builder to see the ones that apply to your own parts.
$130.00 MSRP·754 g
What the maker states
- Bottom bracket
- Bottom-bracket interface 24mm-road
- Chainline
- 49.7 mm
- Chainrings
- 1x chainring
- Ring
- Chainring 40 teeth
- Speeds
- 11-speed (rear index count the maker rates it for)
The rest of what the maker states1 not published
1 further field the checker looks for is not published by Shimano, so we leave it blank rather than estimate it, and that check stays silent on this crankset. It is ring standard. Each is recorded as “not stated by the maker (not checked)”.
Source: the maker’s page. Last checked 2026-08-15.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 3T Exploro Race (Frame) Worth knowing
- 3T Fango LTD (Fork) No conflicts found
- 8bar Gravel Carbon Disc Fork v2 (Fork) No conflicts found
- 9point8 Fall Line R (Dropper Post) No conflicts found
- Acros ZS44/28.6 | EC44/40 Headset (Headset) No conflicts found
- All-City Cosmic Stallion LTD (Frame) Worth knowing
6 of 480 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
