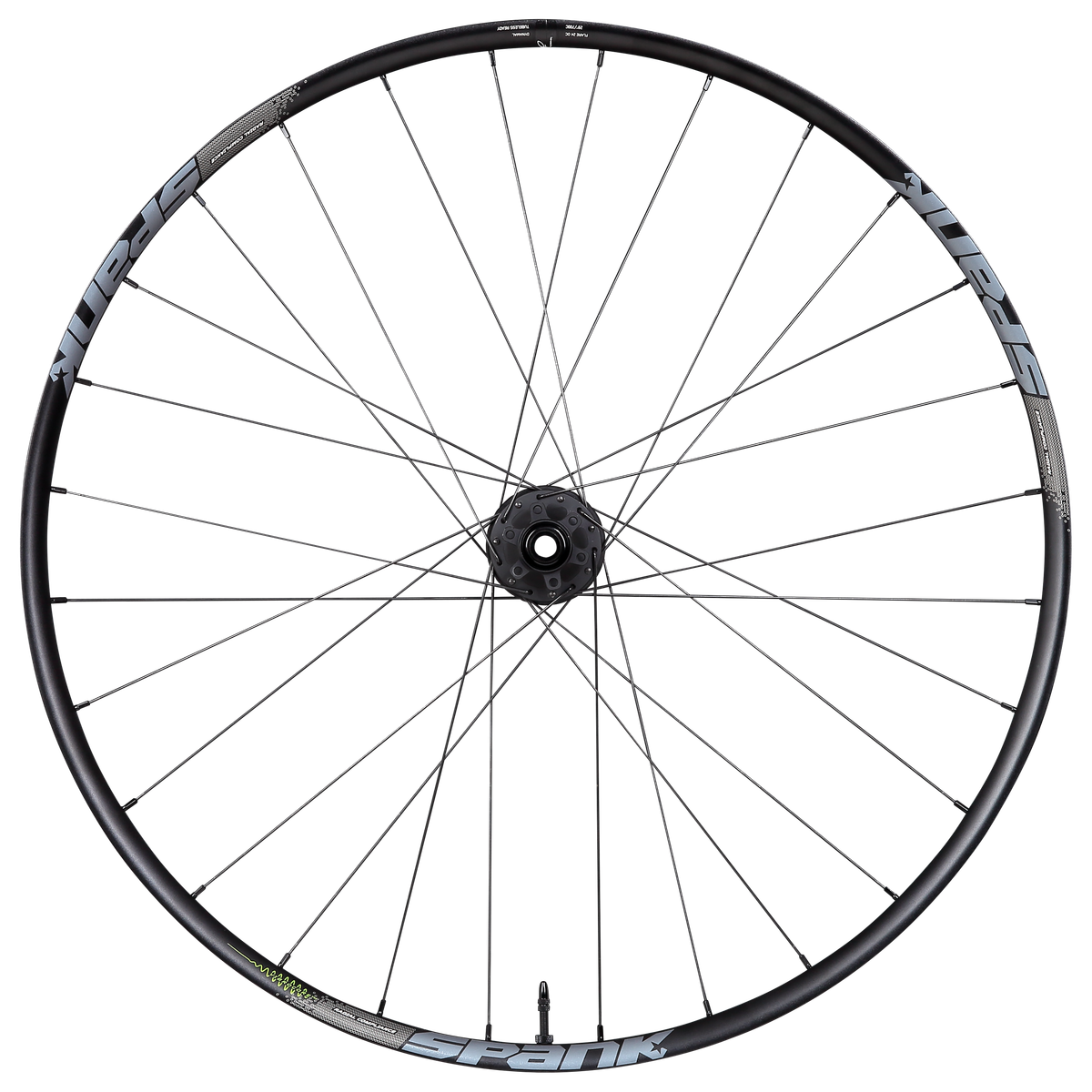

Spank Flare 24 OC Vibrocore Rear Wheel Rear Wheel
What the checker says78will not fit3check before you buy
Run variant by variant through the gravel bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 790 verified gravel bike parts in this catalog. 724 produced no finding of any kind; that is Flare 24 OC Vibrocore Rear Wheel (Shimano HG-Road). Flare 24 OC Vibrocore Rear Wheel (SRAM XDR) clears 564. Each variant produces 17 to 61 distinct errors and 3 distinct warnings.
Will not fit
- Will not fiterror · Front TireWheel size mismatch: Rear wheel = 650b, Front tire = 700c. A road or gravel build runs one wheel size end to end. On 108 of the 137 verified tires in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Rear TireWheel size mismatch: Rear wheel = 650b, Rear tire = 700c. A road or gravel build runs one wheel size end to end. On 108 of the 137 verified tires in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Front WheelWheel size mismatch: Front wheel = 700c, Rear wheel = 650b. A road or gravel build runs one wheel size end to end. On 48 of the 56 verified front wheels in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Front TireWheel size mismatch: Rear wheel = 700c, Front tire = 650b. A road or gravel build runs one wheel size end to end. On 29 of the 137 verified tires in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Rear TireWheel size mismatch: Rear wheel = 700c, Rear tire = 650b. A road or gravel build runs one wheel size end to end. On 29 of the 137 verified tires in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Rear RotorRear rotor mismatch: a Center Lock rotor cannot bolt to Spank Flare 24 OC Vibrocore Rear Wheel (SRAM XDR)'s 6-bolt hub. On 11 of the 30 verified rotors in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Rear RotorRear rotor mismatch: a Center Lock rotor cannot bolt to Spank Flare 24 OC Vibrocore Rear Wheel (Shimano HG-Road)'s 6-bolt hub. On 11 of the 30 verified rotors in this catalog. Applies to 2 of 4 variants.
- Will not fiterror · Front WheelWheel size mismatch: Front wheel = 650b, Rear wheel = 700c. A road or gravel build runs one wheel size end to end. On 8 of the 56 verified front wheels in this catalog. Applies to 2 of 4 variants.
Rg wheel size, Frame. 33 more findings from the same check, on up to 1 of the 69 verified frames each.
Rg freehub, Cassette. 22 more findings from the same check, on up to 1 of the 18 verified cassettes each.
Rg rear axle, Frame. 8 more findings from the same check, on up to 1 of the 69 verified frames each.
Rg wheel size, Fork. 7 more findings from the same check, on up to 2 of the 30 verified forks each.
Open a variant in the builder to see the ones that apply to your own parts.
Check before you buy
- Check before you buywarning · Rear TireRear tire width: 30mm is below the wheel maker's recommended minimum of 35mm for this rim. On 3 of the 137 verified tires in this catalog. Applies to all 4 variants.
- Check before you buywarning · Rear TireRear tire width: 32mm is below the wheel maker's recommended minimum of 35mm for this rim. On 1 of the 137 verified tires in this catalog. Applies to all 4 variants.
- Check before you buywarning · Rear TireRear tire width: 33mm is below the wheel maker's recommended minimum of 35mm for this rim. On 1 of the 137 verified tires in this catalog. Applies to all 4 variants.
$459.99 MSRP·920 to 953 g
What the maker states
- Wheel
- Built for a 650b wheel (on 2 of 4 variants); Built for a 700c wheel (on 2 of 4 variants)
- Freehub
- / driver hg-road (on 2 of 4 variants); / driver xdr (on 2 of 4 variants)
- Rotor mount
- 6-bolt
- Internal width
- Internal rim width 24 mm
- Hub
- Spacing 12x142
- Brake system
- Disc
A value shown as a set or a range differs between this model’s variants and is never one variant’s spec.
4 verified variants
| Variant | Wheel | Freehub | Price (MSRP) | Weight | Source | Last checked | Build |
|---|---|---|---|---|---|---|---|
| Flare 24 OC Vibrocore Rear Wheel (Shimano HG-Road) | Built for a 650b wheel | / driver hg-road | $459.99 | 928 g | maker’s page | 2026-08-20 | Build with this |
| Flare 24 OC Vibrocore Rear Wheel (SRAM XDR) | Built for a 650b wheel | / driver xdr | $459.99 | 920 g | maker’s page | 2026-08-20 | Build with this |
| Flare 24 OC Vibrocore Rear Wheel (Shimano HG-Road) | Built for a 700c wheel | / driver hg-road | $459.99 | 953 g | maker’s page | 2026-08-20 | Build with this |
| Flare 24 OC Vibrocore Rear Wheel (SRAM XDR) | Built for a 700c wheel | / driver xdr | $459.99 | 945 g | maker’s page | 2026-08-20 | Build with this |
The rest of what the maker states3 stated
- Tire up to 62 mm (maker-stated maximum).
- Tire no narrower than 35 mm.
- Maximum tire basis: label.
Source: each variant links the maker’s own page in the table above. Last checked 2026-08-20.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 3T Exploro Race (Frame) No conflicts found
- 3T Fango LTD (Fork) No conflicts found
- 8bar Gravel Carbon Disc Fork v2 (Fork) No conflicts found
- 9point8 Fall Line R (Dropper Post) No conflicts found
- Acros ZS44/28.6 | EC44/40 Headset (Headset) No conflicts found
- All-City Cosmic Stallion LTD (Frame) No conflicts found
6 of 457 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
