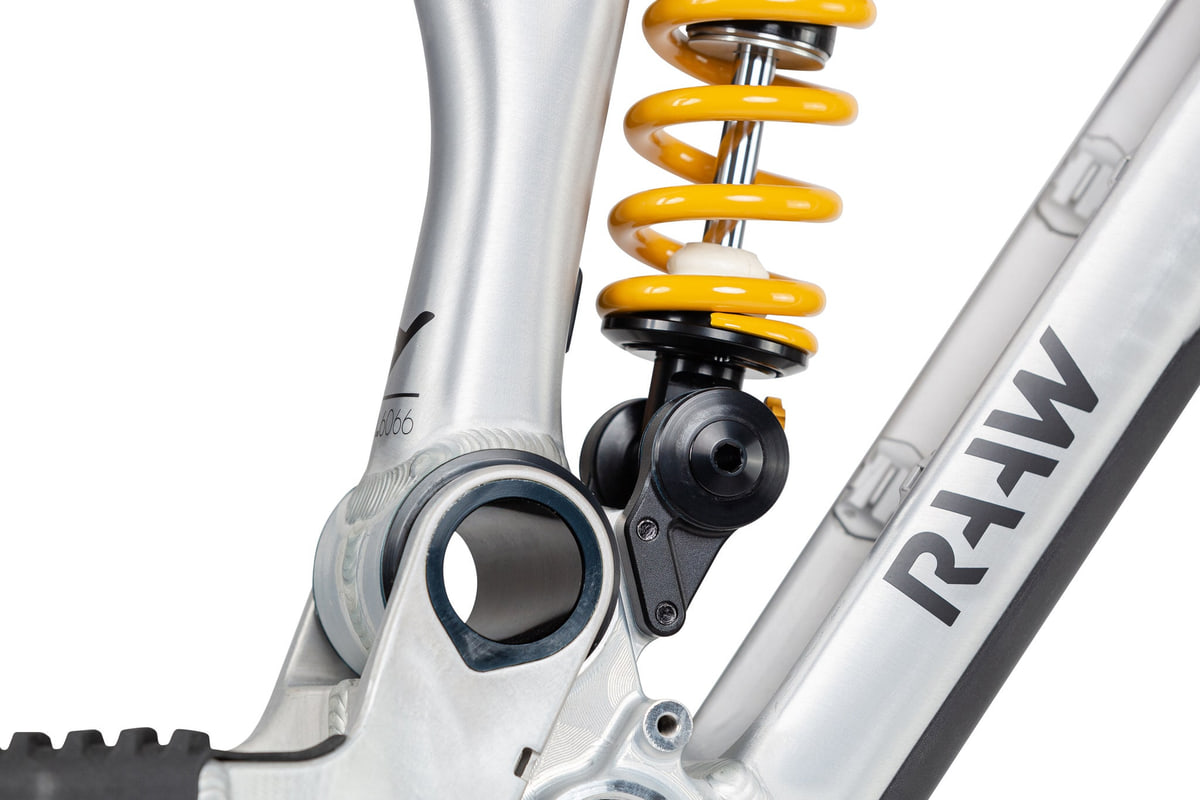

RAAW Madonna Frame
What the checker says782will not fit23check before you buy462worth knowing
Run variant by variant through the mountain bike builder’s own engine. Every sentence below is the checker’s, unedited. Nothing here says this part fits your bike; it says what it does and does not fit among the parts we hold.
Checked against 5916 verified mountain bike parts in this catalog. 3314 produced no finding of any kind; that is Madonna R (2026). Madonna V2.2 (2021) clears 3158. Each variant produces 239 to 264 distinct errors and 6 to 7 distinct warnings.
Will not fit
- Will not fiterror · Rear ShockShock mount mismatch: Frame uses a Trunnion shock but Shock is Standard eyelet. On 529 of the 1025 verified rear shocks in this catalog. Applies to all 4 variants.
- Will not fiterror · Rear WheelUnsupported wheel setup: RAAW Madonna V2.2 supports 29", but this build is front (any) / rear 27.5". On 239 of the 607 verified rear wheels in this catalog. Applies to 1 of 4 variants.
- Will not fiterror · Front TireUnsupported wheel setup: RAAW Madonna R supports 29" / 29"/27.5", but this build is front 27.5" / rear (any). On 223 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Will not fiterror · Front TireUnsupported wheel setup: RAAW Madonna V2.2 supports 29", but this build is front 27.5" / rear (any). On 223 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Will not fiterror · Front TireUnsupported wheel setup: RAAW Madonna V3 supports 29" / 29"/27.5", but this build is front 27.5" / rear (any). On 223 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Will not fiterror · Front TireUnsupported wheel setup: RAAW Madonna V3.2 supports 29" / 29"/27.5", but this build is front 27.5" / rear (any). On 223 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Will not fiterror · Rear TireUnsupported wheel setup: RAAW Madonna V2.2 supports 29", but this build is front (any) / rear 27.5". On 223 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
Headset upper, Headset. 210 more findings from the same check, on up to 1 of the 70 verified headsets each.
Headset lower, Headset. 176 more findings from the same check, on up to 1 of the 70 verified headsets each.
Bb shell, Bottom Bracket. 136 more findings from the same check, on up to 1 of the 63 verified bottom brackets each.
Shock size, Rear Shock. 51 more findings from the same check, on up to 57 of the 1025 verified rear shocks each.
Fork travel min, Fork. 36 more findings from the same check, on up to 77 of the 490 verified forks each.
Gearbox frame, Gearbox. 24 more findings from the same check, on up to 1 of the 6 verified gearboxs each.
Rear brake mount, Rear Brake. 24 more findings from the same check, on up to 1 of the 92 verified brakes each.
Fork travel, Fork. 12 more findings from the same check, on up to 19 of the 490 verified forks each.
Wheel config, Front Rim. 12 more findings from the same check, on up to 33 of the 75 verified rims each.
Wheel config, Front Wheel. 12 more findings from the same check, on up to 90 of the 270 verified front wheels each.
Wheel config, Fork. 8 more findings from the same check, on up to 157 of the 490 verified forks each.
Wheel config, Front Tire. 8 more findings from the same check, on up to 21 of the 617 verified tires each.
Wheel config, Rear Rim. 8 more findings from the same check, on up to 3 of the 75 verified rims each.
Wheel config, Rear Tire. 8 more findings from the same check, on up to 21 of the 617 verified tires each.
Wheel config, Rear Wheel. 8 more findings from the same check, on up to 7 of the 607 verified rear wheels each.
Udh, Rear Derailleur. 7 more findings from the same check, on up to 1 of the 75 verified rear derailleurs each.
Rear axle, Rear Hub. 6 more findings from the same check, on up to 27 of the 124 verified rear hubs each.
Shock stroke short, Rear Shock. 6 more findings from the same check, on up to 46 of the 1025 verified rear shocks each.
Oem shock, Rear Shock. 5 more findings from the same check, on up to 1 of the 1025 verified rear shocks each.
Rear axle, Rear Wheel. 4 more findings from the same check, on up to 143 of the 607 verified rear wheels each.
Shock stroke over, Rear Shock. 4 more findings from the same check, on up to 1 of the 1025 verified rear shocks each.
Seatpost diameter small, Seatpost (rigid). 3 more findings from the same check, on up to 22 of the 70 verified seatpost (rigid)s each.
Dropper diameter small, Dropper Post. 2 more findings from the same check, on up to 119 of the 350 verified dropper posts each.
Steerer, Fork. 2 more findings from the same check, on up to 55 of the 490 verified forks each.
Dropper diameter, Dropper Post. 1 more finding from the same check, on up to 72 of the 350 verified dropper posts each.
Seatpost diameter, Seatpost (rigid). 1 more finding from the same check, on up to 4 of the 70 verified seatpost (rigid)s each.
Open a variant in the builder to see the ones that apply to your own parts.
Check before you buy
- Check before you buywarning · Rear RotorRear rotor: 220mm exceeds the frame max of 203mm. A post-mount adapter is the part that steps a caliper up to a bigger rotor, sold in the maker’s own discrete size steps (commonly +20mm, e.g. 160 to 180mm or 180 to 200mm) rather than for any gap - and not every step is offered for every caliper model, so check the maker’s own fitment before buying. On 15 of the 177 verified rotors in this catalog. Applies to 3 of 4 variants.
- Check before you buywarning · Rear TireRear tire clearance: 2.8in tire is wider than RAAW Madonna R's 2.6in frame max. On 15 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Check before you buywarning · Rear TireRear tire clearance: 2.8in tire is wider than RAAW Madonna V2.2's 2.6in frame max. On 15 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Check before you buywarning · Rear TireRear tire clearance: 2.8in tire is wider than RAAW Madonna V3's 2.6in frame max. On 15 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
- Check before you buywarning · Rear TireRear tire clearance: 2.8in tire is wider than RAAW Madonna V3.2's 2.6in frame max. On 15 of the 617 verified tires in this catalog. Applies to 1 of 4 variants.
Rear tire frame, Rear Tire. 16 more findings from the same check, on up to 5 of the 617 verified tires each.
Rear rotor max, Rear Rotor. 2 more findings from the same check, on up to 5 of the 177 verified rotors each.
Open a variant in the builder to see the ones that apply to your own parts.
Worth knowing
- Worth knowinginfo · ForkHeadset: RAAW Madonna R takes ZS44 upper / ZS56 lower cups (S.H.I.S.) to mount the fork. RAAW states this frame does not include a headset, so pick one here. On 490 of the 490 verified forks in this catalog. Applies to 1 of 4 variants.
- Worth knowinginfo · ForkHeadset: RAAW Madonna V2.2 takes ZS44 upper / ZS56 lower cups (S.H.I.S.) to mount the fork - many frames ship with one; pick one here if yours does not. On 490 of the 490 verified forks in this catalog. Applies to 1 of 4 variants.
- Worth knowinginfo · ForkHeadset: RAAW Madonna V3 takes ZS56 upper / ZS56 lower cups (S.H.I.S.) to mount the fork - many frames ship with one; pick one here if yours does not. On 490 of the 490 verified forks in this catalog. Applies to 1 of 4 variants.
- Worth knowinginfo · ForkHeadset: RAAW Madonna V3.2 takes ZS56 upper / ZS56 lower cups (S.H.I.S.) to mount the fork. RAAW states this frame does not include a headset, so pick one here. On 490 of the 490 verified forks in this catalog. Applies to 1 of 4 variants.
- Worth knowinginfo · Rear ShockMaker-listed: RAAW names this shock for this frame ("custom-tuned shocks that are specifically optimized for our kinematics"). Source: https://raawmtb.com/en-us/products/madonna-v3-2-frame-kit (checked 2026-09-10). On 5 of the 1025 verified rear shocks in this catalog. Applies to 1 of 4 variants.
Dropper insertion, Dropper Post. 360 more findings from the same check, on up to 3 of the 350 verified dropper posts each.
Bb advisory, Crankset. 97 more findings from the same check, on up to 2 of the 98 verified cranksets each.
Open a variant in the builder to see the ones that apply to your own parts.
$2,055.00 to $2,899.00 MSRP·3900 to 4200 g
What the maker states
- Wheel configs
- Frame takes 29" and 29"/27.5" wheels (on 3 of 4 variants); Frame takes 29" wheels (on 1 of 4 variants)
- Travel
- Frame travel 160 mm (maker-stated) (on 3 of 4 variants); Frame travel 165 mm (maker-stated) (on 1 of 4 variants)
- Shock eye
- Shock eye-to-eye 205 mm
- Shock stroke
- 65 mm
- Shock mount
- Trunnion
- Maximum fork travel
- Approved for a fork up to 180 mm of travel
A value shown as a set or a range differs between this model’s variants and is never one variant’s spec.
4 verified variants
| Variant | Wheel configs | Travel | Head tube upper | Price (MSRP) | Weight | Source | Last checked | Build |
|---|---|---|---|---|---|---|---|---|
| Madonna V2.2 (2021) | Frame takes 29" wheels | Frame travel 160 mm (maker-stated) | Upper head-tube bore ZS44/28.6 (S.H.I.S.) | $2,899.00 | 3900 g | maker’s page | 2026-07-10 | Build with this |
| Madonna V3 (2023) | Frame takes 29" and 29"/27.5" wheels | Frame travel 160 mm (maker-stated) | Upper head-tube bore ZS56/28.6 (S.H.I.S.) | $2,599.00 | 3900 g | maker’s page | 2026-07-10 | Build with this |
| Madonna V3.2 (2026) | Frame takes 29" and 29"/27.5" wheels | Frame travel 160 mm (maker-stated) | Upper head-tube bore ZS56/28.6 (S.H.I.S.) | $2,724.00 | 3900 g | maker’s page | 2026-07-10 | Build with this |
| Madonna R (2026) | Frame takes 29" and 29"/27.5" wheels | Frame travel 165 mm (maker-stated) | Upper head-tube bore ZS44/28.6 (S.H.I.S.) | $2,055.00 | 4200 g | maker’s page | 2026-07-10 | Build with this |
The rest of what the maker states19 stated·17 not published
- Maker-stated design fork travel 170 mm.
- Rear axle Boost 148x12.
- Bottom-bracket shell BSA threaded 73.
- Upper head-tube bore ZS44/28.6 (S.H.I.S.) (on 2 of 4 variants); Upper head-tube bore ZS56/28.6 (S.H.I.S.) (on 2 of 4 variants).
- Lower head-tube bore ZS56/40 (S.H.I.S.).
- Seatpost diameter 31.6 mm.
- Rear rotor up to 203 mm (maker-stated maximum) (on 3 of 4 variants); Rear rotor up to 220 mm (maker-stated maximum) (on 1 of 4 variants).
- Tire up to 2.6" (maker-stated maximum).
- The maker approves a coil shock (on 1 of 4 variants).
- SRAM Universal Derailleur Hanger (on 3 of 4 variants); The maker does not state a UDH dropout (on 1 of 4 variants).
- Fits a Tapered (1.5-1.125) head tube.
- Brake mount Post mount.
- Full-suspension frame.
- Sold as a frame only.
- Aluminum construction.
- UDH retrofit kit: RAAW UDH Retrofit Kit (on 1 of 4 variants).
- Maximum tire basis: label (on 1 of 4 variants).
- The maker states no headset is included (on 2 of 4 variants).
- Maker shocks: relation offered, word custom-tuned shocks that are specifically optimized for our kinematics, exclusive no, source https://raawmtb.com/en-us/products/madonna-v3-2-frame-kit, lastChecked 2026-09-10, ids sh-fox-float-x-factory-205x65-trun, sh-fox-float-x-performance-205x65-trun, sh-fox-float-x-performance-elite-205x65-trun, sh-fox-float-x2-factory-205x65-trun, sh-fox-float-x2-perf-elite-205x65-trun, sh-fox-dhx2-factory-205x65-trun-raaw, sh-ohlins-ttx2air-205x65-trun, sh-ohlins-ttx2air-m2-205x65-trun and sh-ohlins-ttx22-m2-205x65-trun (on 1 of 4 variants).
17 further fields the checker looks for are not published by RAAW, so we leave them blank rather than estimate them, and those 17 checks stay silent on this frame. They are minimum rear rotor, alt shock strokes, shock stroke by size, travel by stroke, minimum fork travel, fork travel hard, drive mode, dropout type, gearbox mount, belt drive, udh unstated, maximum tire mm, maximum tire by wheel, head tube upper alts, head tube lower alts, headset included model and headset included part. Each is recorded as “not stated by the maker (not checked)”.
Source: each variant links the maker’s own page in the table above. Last checked 2026-07-10.
Checked against
The checker ran this model against every verified part below that it has a slot for, the same way it checks a build in the builder. What follows is the verdict it actually produced for that specific pairing — not a recommendation, and not a guarantee any of these parts fits your own bike.
- 5DEV R-SPEC Trail/Enduro Cranks (Crankset) Worth knowing
- 9point8 Fall Line (Dropper Post) Will not fit
- 9point8 Stout (31.8, 30mm) (Stem) No conflicts found
- ACID SLX 30 front (Front Wheel) No conflicts found
- ACID SLX 30 rear (Rear Wheel) No conflicts found
- Acros ZS44/ZS56 (Headset) Will not fit
6 of 1701 counterparts with a page of their own that the checker actually probed this model against, in alphabetical order by brand and model — never by price, popularity or the verdict itself.
